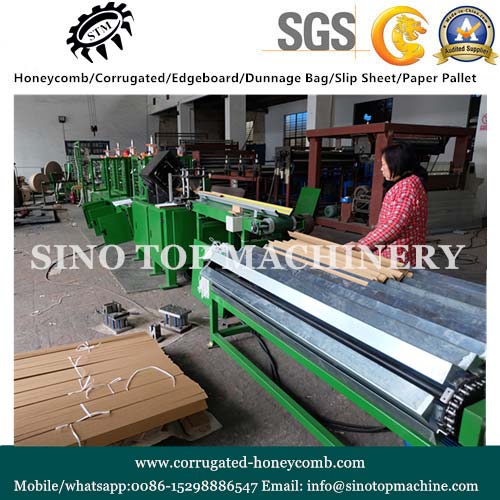

Edge Board Protector machine 120A is only for single way of V shape, this machine is suitable for customer who need only V shape, the big advantage of this machine is simple operation, we also provide V shape edge protection machine with Corner Guard function, our 120AS model, if you need flat board, then you can choose our V edgeboard machine and Flat Cardboard 2-in-1 machine, we call 120AP. If you need U profile edge protector for glass and doors, our 120P and 120PU model will surely meet your demand. It can make both U shaple edge protector and flat cardboard protection.
| Model | ZHJ120AS |
|---|---|
| Width of edge | 15-120mm for both equal and unequal |
| Notching Mold | 90°corner and lock corner |
| Production speed | 0-45m/min |
| Notching speed | 20m/min |
| Cutting accuracy | ±1mm |
| Thickness | 1.5mm-10mm |
| Max layer | 14 layer |
| Paper demand | Outer Kraft paper or similar paper ≥160g, inner paper 300g |
| Power | 31KW |
| Cutting method | Serve cutting |
| Gluing method | Both single side and double sides |
| Adjustment of roller | Minute adjustment For left and right and up and down by air pressure |
| Overall Length | L25000*W1250*H1600mm |
| Weight | 6Ton |
