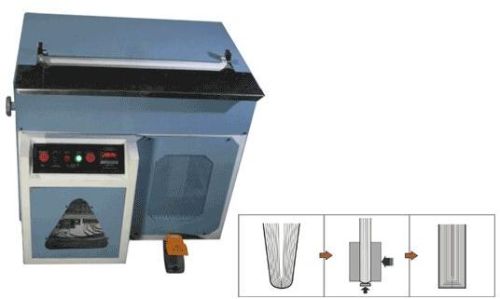

We are offering edge squaring machine etc. For finshing of hard/ perfect bound book, centre stiched magazines, booklest, exercise note books, dictionaries diaries & exercise note books etc.
Square shape of spine simlar to perfect bound books. Open books flat wihout any damage to spine & print on the spine section.
Square books are easy to handle for stacking and packing. Hydraulic press froms permanent square shape of spine for aesthetic and functional value addition at 900 cycle per safety precaution-emergency switch aborts the operating cycle.
Plc based control panel for sequencing. Optimum & simplified diagnostic.
squaring with roller system
the clamping stroke can be set as single stroke or double stroke.
1 to 4 copies (up to a maximum opening of 70mm) are inserted in the machine. The end - paper sticks perfectly to the spine is rubbed with the help of steel rollers to form a perfect square -shape and ensures covering material adheres to the spine. There by maintaining the right ange of the spine and consistency of all book -block
technical data
model unit esm-70cms esm/-81 cms
book block wide (min - max) mm 650 700
spin thickness (min - max) mm 5-70 5-70
book height (min - max) mm optional optional
system clamp pressure (adjustable) tons 9 10
squre pressure kgs 3500 3600
electrical load/ moter kva/hp 2.25/3 2.25/3
hydraulic oil capacity itrs 80 90
overall dimension (wxdxh) cms 103x90x96 104x96x96
net weight (approx.) kgs 1000 1100
electrical supply 400/440 vac 3 phase or single phase 220 vac
