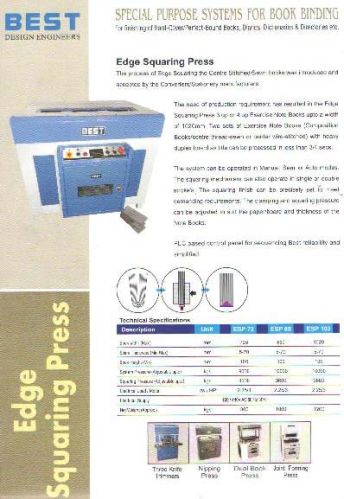

We are a well-known Edge Squaring Press Manufacturer and Supplier. Edge Squaring Press, which we offer, is a special purpose system for book binding. The Edge Squaring Press is widely demanded for finishing of hard-cover/perfect-bound books, diaries, dictionaries & directories, etc. The Edge Squaring Press can be operated in manual, semi or auto modes. The squaring mechanism of Edge Squaring Press can also operate in single or double strokes.
Process Of Edge Squaring Press
The process of Edge Squaring the centre stitched/sewn books was introduced and accepted by the converters/stationery manufacturers. The need of production requirement has resulted in the Edge Squaring Press 3 up exercise note books upto a width of 800 mm, two sets of exercise note books (composition books/centre thread-sewn or center wire-stitched) with heavy duplex board as title can be processed in less than 3/4secs. The squaring finish can be precisely set to meet demanding requirements. The clamping and squaring pressure can be adjusted to suit the paper/board and thickness of the note books. PLC based control panel for sequencing best reliability and simplified.
| Description | Unit | ESP 65 | ESP 80 |
|---|---|---|---|
| Book Width (Max) | mm | 650 | 800 |
| Spine Thickness (Min-Max) | mm | 5 - 70 | 5 - 70 |
| Book Height (Min) | mm | 100 | 100 |
| System Pressure (Adjustable upto) | kgs | 9000 | 10000 |
| Squaring Pressure (Adjustable upto) | kgs | 3500 | 3600 |
| Electrical Laod / Motor | Kw / HP | 2.25/3 | 2.25/3 |
| Electrical Supply | 400 / 440 AC 50 Hz 3PH | ||
| Net Weight (Approx.) | kgs | 900 | 1100 |
