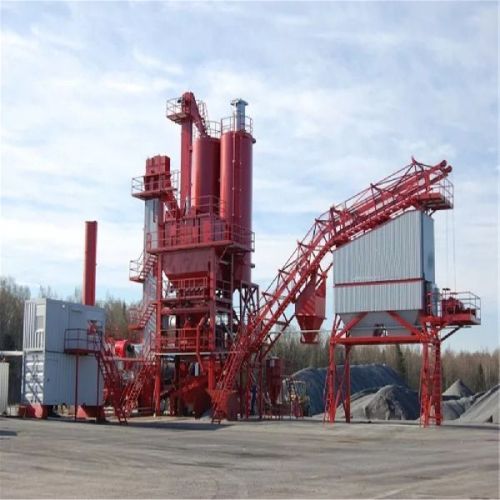

Efficiently Bitumen Asphalt Mixing Plant

Efficiently Bitumen Asphalt Mixing Plant (180-240t/h)  Product Description  LB series concrete asphalt mixing equipment will be the initial grade with a good cold aggregate added to the drying cylinder, after drying heating, and then heat aggregate to enhance, and then screening. Stored in a hot pot storage, and added to the mixing pan with the metered fillers and binders. Evenly mixed into asphalt mixture.Asphalt mixing equipment is mainly composed of batching system, drying system, combustion system, hot material lifting, vibrating screen, hot material storage warehouse, weighing mixing system, asphalt supply system, powder supply system, dust removal system, finished silo and control system Part of the composition. Product details Technical Parameters of Used  Asphalt  Plant  Type LB1000 LB1500 LB2000 LB3000 LB4000 LB5000 Productivity(t/h) 80 120 160 240 320 400 Cold aggregate supply system/ Hopper quantity 4 4 5 5 6 6  Hopper volume(m3) 8 8 13 13 13 15  Charging width(m) 3.6 3.6 3.6 3.6 3.6 3.6 Drying drum Diameter(m) 1.7 1.8 2.2 2.5 2.75 2.9  Length(m) 6 7.5 8 9 10.5 11  Driving power(kw) 18.5 30 4×15 4×22 4×30 4×37  Burner capacity(MW) 7 11 14 20 28 35 Bag dust collector Filtering area(m2) 428 550 620 896 1200 1400  Induced fan power(kw) 75 90 110 160 200 220 Mixing tower Vibration screen layer 4 4 4 5 6 6  Hot&n.
