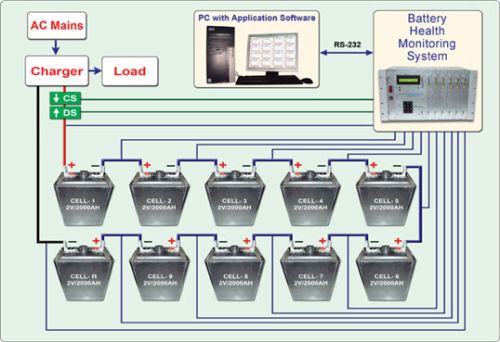

Battery Health Monitoring system (BHMS) is a microprocessor based intelligent system capable of monitoring the health of battery bank. BHMS calculates the net charge of battery bank, deterioration of batteries in battery bank during the charge-discharge cycles and actual efficiency of the batteries.
Features:
Continuous monitoring and recording of charge & discharge currents of battery bank, individual cell voltages, individual cell temperatures, ac mains voltage, temperature of the battery room. Identifies faulty cell by monitoring cell̢۪s parameters. Audio and visual alarms whenever battery fault occurs. Remote monitoring of battery health through modem communication.
Application software Specifications:
monitors cells of 2v dc12v dc.
Current measurement range: 0-600a.
Batteries any equipment temperature measurement range: 0°c to 125°c
Monitors more than one battery bank.
Maximum number of parameters that can be monitored are 64.
Inbuilt memory storage for 10, 00,000 events.
