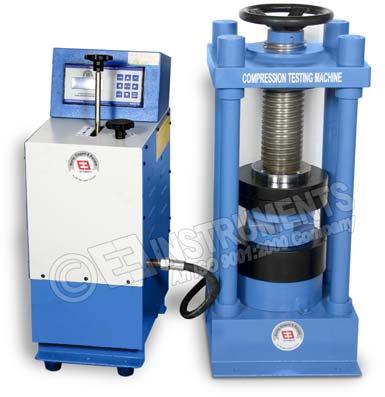

Compression Testing Machine - Hand Operated

We are offering compression testing machines conform to the requirements of is : 516 and other international standards like bs and astm. Latest design with hardchrome plate piston with new type of long life oil seal. Four pillar model is superior in design, reliability and accuracy in comparison to channel model. No welded parts. All joints reinforced with heavy nutbolt
some of the salient features are :
* high stability
* self-aligning platen assembly.
* gauges are calibrated in kilo newtons against
certified proving rings.
* suitable for testing cubes of various sizes
* using special platens, bricks also can be tested.(extra cost)
general specification
loading unit.
The loading unit consists of a cross-head and base with solid pillars supports connecting the base and cross-head firmly.
The hydraulic jack is fixed to the base. The platen of the machine are hardened ground and polished the upper platen is provided with self-aligning action. To facililate testing of various size specimens. Spacer block provided.
Pumping unit.
The hydraulic pumping unit is manually operated the load is measured on bourdon tube type pressure gauge which is calibrated against certified proving rings. The pressure gauge is fitted maximum load pointer.
