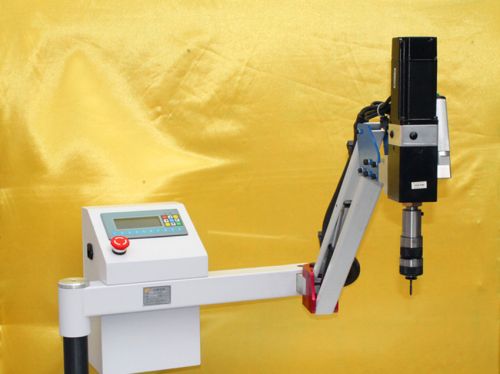

Elecric Tapping Machine, Brand Name : TaiYi

We are offering Elecric Tapping Machine.
Detailed Product Description
Hot servo tapping machine
1.Capacity:M1-M12
2.Servo motor imported from Japan
Product name: electric company take nc tapping machines
Product Description:
Voltage: 220 V ac
Power: 800 W
Motor speed: 3600 RPM
Tapping ability: M1- M12
Spindle speed: 750 RPM
Trestle length: 1300 MM (Also can use 1800mm)
The man-machine interface: HD Touch screen
International torque: 60 N
This machine torque: 63 N
Model types:
Model NO
POWER
TAPPING ABILITY
SPEED (r/min)
TORQUE N.M
WORKING RADIUS
Object Request
TY-D1216
800W
M1-M12
750
63
1300/1800mm
45 various degree
TY-D1618
800W
M3-M16
450
63
1300/1800mm
45 / various degree
TY-D2018
800W
M6-M20
400
63
2000mm
45/various degree
TY-D2720
1200W
M6-M27
270
63
2000mm
45 / various degree
TY-D3324
1200W
M10-M33
270
63
2000mm
45 / various degree
TY-D4545
1500W
M12-M45
150
63
1300mm
45 / various degree
The product has the man-machine interface, easy to operate, the work is quick and efficient.
Advantage: safety environmental noise is low, the buffer start favorable protection taps, tube clip has overload protection system and the machine has alarm system favorable machines and taps protection, stable performance, tapping smoothly, silk hole smooth, can set up automatic depth ! Have cooling system, the advantageous protect the internal line!
Precision Speed Changing Box Tappin no electric noise,start buffering for protect screw tap,Level 2 torque protection
Servo NC Tapping Machine(TY-D1216;TY-D1618;TY-D2018;TY-D2720;TY-D3324;TY-D4545)
1:Brand;
2:Automatically advancing and retreating
3:Buffer to start
4:HD screen
5:Automatic lubricating system
6:Double torque protection
7:Low noise
8:Press a button to return to up right position
9:High torison matching
10:Storage 50 groups tapping data
11:Cooling system
12:Non-standard can be customized
13:Freely swith from manual to automatic operation
14:The depth of drilling and tapping can be set and memorized randomly
15:Import configuration
