Electric 3 Way Control Valve

Get Latest Price

TypeControl Valve
Nominal PressurePN16,PN25,PN40,PN64,Class150,Class 300
Input Signal4-20mADC,1-5VDC
Nominal DiameterDN25,DN300
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

SVR GLOBAL

Pappanaickenpalayam, Coimbatore, Tamil Nadu

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

TypeControl Valve
Stem Material17-4PH,ASTM A276 304
Nominal DiameterDN25,DN300
Bellows MaterialPTFE,PFA
Power SupplyAC220V 50HZ
Lining MaterialPO,PE,PP F46,F4,PFA
Input Signal4-20mADC,1-5VDC
Nominal PressurePN16,PN25,PN40,PN64,Class150,Class 300

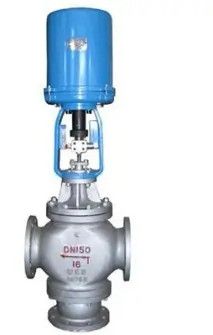

We offer an Electric 3 Way Control Valve designed for precise control applications. This valve features a PO lining material, PTFE bellows material, and 17-4PH stem material for durability. With a nominal diameter of DN25 and nominal pressure of PN16, it ensures reliable performance. The valve operates with a 4-20mADC input signal and is powered by AC220V 50HZ. Ideal for manufacturers seeking high-quality control valves for their systems.

DN		25	32	40	50	65	80	100	125	150	200	250	300
L	PN16	185	200	220	250	275	300	350	410	450	550	670	770
	PN40	190	210	230	255	285	310	355	425	460	560	740	803
	PN64	200	200	240	265	295	320	370	440	475	570	752	819
H1		135	152	165	180	200	220	222	265	322	362	508	563
A		225							310
H Normal atmospheric temperature		555	561	660	675	863	868	872	905	920	950	1203	1265
H Medium temperature		707	709	812	827	1027	1032	1036	1120	1135	1165	1485	1557
Weight (PN64 Normal atmospheric temperature）		50	55	70	78	110	120	150	180	310	410	650	810
