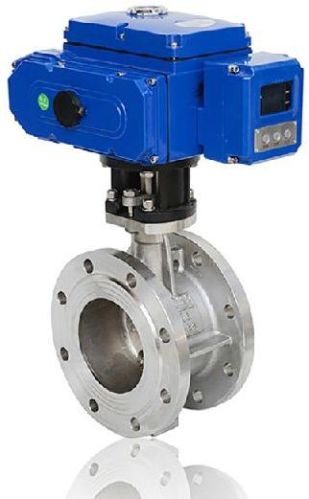

Electric AC220V DC24V 4-20mA Motorized Flanged Butterfly Valve

₹ 6,244.50 / Set

MOQ1 Set(s)
MaterialWCB, D.I., STAINLESS STEEL
Brand NameROEWISH
Port SizeDN50-DN600
PowerElectric
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shanghai Roewish Automatic Technology Co Ltd

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameROEWISH
MaterialWCB, D.I., STAINLESS STEEL
PowerElectric
Pressure16-64 BAR
StructureButterfly
MediaWater, gas, oil
Port SizeDN50-DN600
Temperature Of MediaNormal
Country of OriginCHINA
ConnectionFlange
ActuatorElectric, motorized
Model NumberD941F-16C
Power supplyAC110V, AC220V, AC380V, DC24V
WeatherproofIP67

Device for regulating or cutting off medium in pipeline.
Suitable for hand lever worm gear, electric and pneumatic control.
Design and manufacturing standards in line with GBT12238.
Pressure test conforms to GBT13927.
Structure length is GBT12221.
Side flange standard conforms to GBT17241.6.
Specification of Butterfly valve:
Fluid medium: water, oil, gas and various corrosive media
Using temperature: -10 ~ 150
Applicable pressure: PN1.0 ~ 1.6MPa
Applicable size: DN50 ~ DN1200
Connection: flange
Connection standard: GBANSIDINAPIISOBS
Material of Butterfly valve:
Body: cast iron, ductile cast iron
Seat: Rubber
Disc: ductile iron stainless steel
Note: all components can be selected according to the actual conditions of different materials.
