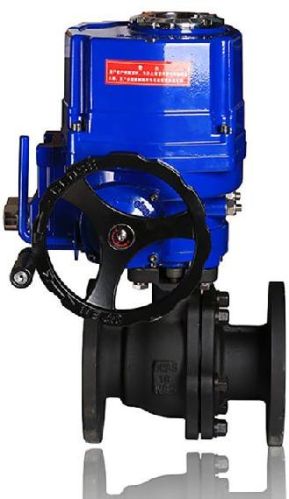

Electric Actuator DC24V AC220V 4-20mA Motorized Flanged Ball Valve

₹ 7,149.50 / Set

MOQ1 Set(s)
MaterialWCB, D.I., Stainless steel
Brand NameROEWISH
Port SizeDN15-DN200
PowerPneumatic, air
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shanghai Roewish Automatic Technology Co Ltd

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameROEWISH
MaterialWCB, D.I., Stainless steel
PowerPneumatic, air
Pressure16 - 64 bar
Port SizeDN15-DN200
Temperature Of MediaNormal
Country of OriginCHINA
ActuatorElectric, motorized
Power supplyAC110V, AC220V, AC380V, DC24V
Model NumberQ941F-16C
ConnectionFlange

Specifications
Flanged Ball Valve with Manual Pneumatic Motorized Actuator Operation
1). Size: 14",38",12",34",1",1-14",1-12",2",2-12",3",4"
2). Valve Body Material: 201304316WCBCF8CF8M
3). Seat Material: PTFE, RPTFE (15% Glass Fiber), RPTFE(25% Carbon Fiber), PPL etc.
4). Availably Connection: NPT, BSP, BSPT, DIN2592999, SWBW. Clamp, Flange
5). Design Standard: ASME B16.34, DIN, GB
6). Handle: Lever Handle,Locking Device Handle upon Request
7). Operation: Manual, Pneumatic, Electric.
Brand: ROEWISH, OEM Accepted
Applicable Media: Q41F-(16-64)C: Water, Oil, Gas
Q41F-(16-64)P: Nitric Acid
Q41F-(16-64)R: Acetic Acid
Normal Pressure: 1000psi
Strength Testing Pressure: PT 2.4,3.8,6.0,9.6Mpa
Seat Testing Pressure(Low Pressure): 0.6Mpa
Applicable Temp: -20C - 425C
Certification: ISO9001-2008CE
Sample Testing: One Sample for free (under $10), Freight Collect
Packing: Plastic Bag, Carton & Plywood CasesAccording to customers' requirement.
Payment: TT, Western Union
Port: NINGBOSHANGHAI
Delivery Time: Within 7 days for stock items after Payment, or 2 - 4 weeks
Term of Delivery: FOB, CRF, CIF, EXW
