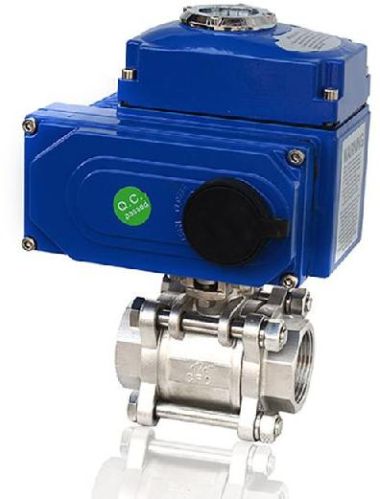

Electric Actuator DC24V AC220V Threaded Ends Motorized Ball Valve

₹ 5,339.50 / Set

MOQ1 Set(s)
MaterialStainless steel
Port SizeDN15-DN100
ConnectionThread
PowerElectric
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Shanghai Roewish Automatic Technology Co Ltd

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2014

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

MaterialStainless steel
PowerElectric
Pressure16 - 64 bar
Structureball
MediaWater, gas, oil
Port SizeDN15-DN100
ConnectionThread
Power supplyAC110V, AC220V, AC380V, DC24V
WeatherproofIP67
ActuatorElectric, motorized

3PC Threaded ball valve
1). Size: 14",38",12",34",1",1-14",1-12",2",2-12",3",4"
2). Valve Body Material: 201304316WCBCF8CF8M
3). Seat Material: PTFE,RPTFE (15% Glass Fiber),RPTFE(25% Carbon Fiber),PPL etc.
4). Availably Connection: NPT,BSP,BSPT,DIN2592999,SWBW.Clamp,Flange
5). Design Standard: ASME B16.34, DIN, GB
6). Handle: Lever Handle,Locking Device Handle upon Request
7). Operation: Manual, Pneumatic, Electric.
Brand: ROEWISH, OEM Accepted
Applicable Media: Q11F-(16-64)C: Water, Oil, Gas
Q11F-(16-64)P: Nitric Acid
Q11F-(16-64)R: Acetic Acid
Normal Pressure: 1000psi
Strength Testing Pressure: PT 2.4,3.8,6.0,9.6Mpa
Seat Testing Pressure(Low Pressure): 0.6Mpa
Applicable Temp: -20C - 425C
Certification: ISO9001-2008CE
Sample Testing: One Sample for free( under $10), Freight Collect
Packing: Plastic Bag, Carton & Plywood CasesAccording to customers' requirement.
Payment: TT, Western Union
Port: NINGBOSHANGHAI
Delivery Time: Within 7 days for stock items after Payment, or 2 - 4 weeks
Term of Delivery: FOB, CRF, CIF, EXW
