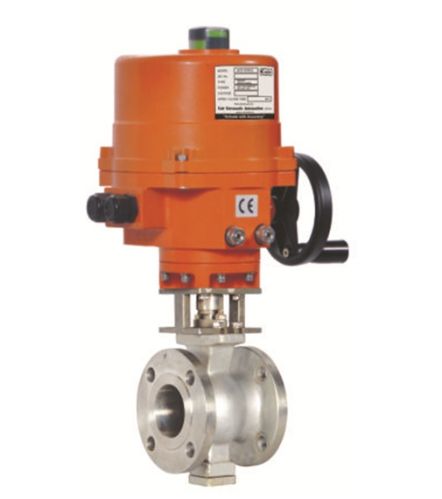

Electric Actuator V - Notch Design Ball Valve

The company has segregated its infrastructure into several units and one of them is packaging unit wherein we meticulously pack our products for ensuring safe and secure deliveries. We are a customer-focused firm and bring a solution that makes us capable to make safe and secure payments. Also, our payment procedure is verified and approved by the authority.

Electrical Actuator Details:

• Manufacturer-  Cair Euromatic Automation Pvt. Ltd.
• Brand / Model-  Cair / Mod
• Approvals-  Design (Tuv) / Iso 9001:2008 / Ce / Iec
• Characteristic  -  On - Off Type / Modulating Type
• Travel Angle-  90 Degree
• Indicator-  Continuous Position Indicator
• Supply    -  220v Ac , 50 Hz
• Body Material-  Aluminum Alloy
• Ambient Temperature -  -10°c ~ 55°c
• Motor Insulation -  Class F
• Protection Class  -  Ip 67 – Weather Proof
• Limit Switch-  1 No + 1 No Output Of 220v Ac
• Position On Power Fail -  Stay Put
• Manual Override -  Provided

Details

• Size - ½” to 16”
• MOC - WCB / CF8 / CF8M
• Seals - PTFE / CFT/ GFT/TFM/ PEEK
• Pressure - 150# / 300#
• Temp - Upto 180°C / 250°C
• Class - 150# / 300#
• Ends - Flanged End
