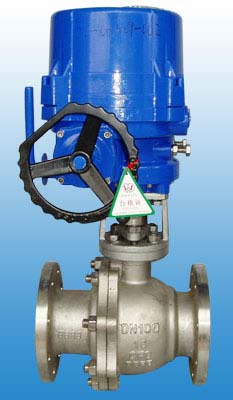

Electric Ball Valve (HS4510)

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

We are a China-based manufacturer, exporter and supplier of Electric Ball Valves. The Valves we offer are appreciated by the clients for their good performance and reliability. Each Ball Valve is....

View More Details

Send Enquiry

Company Information

Chongqing Blaily Instrumentation Co., Ltd.

Chongqing

View Number

Member Since 15 Years
Nature of Business Manufacturer
Year of Establishment 2007

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We are a China-based manufacturer, exporter and supplier of Electric Ball Valves. The Valves we offer are appreciated by the clients for their good performance and reliability. Each Ball Valve is tested by our team of quality experts to ensure the supreme efficiency of these Electric Ball Valves. We offer 2 types of Electric Ball Valves i.e., Electric Ball Valve (HS4510) and Electric Ball Valve (HS4810).

Product introduction :

HS4510 electric O type shut-off ball valve is improved on the basis of our several years’ mature technology and manufactured by the mean of OEM for an American company. It has good quality and stable performance, and can meet the requirements of many industries’ fluid transportation.
This series shut-off (control) valves are comprised of electric actuators and ball valves. The product can be widely applied to the automation control in petroleum, chemical, paper making, metallurgy and waste water treatment industries.

Product characteristics :

Compact structure, small cubage, light weight and convenient to be installed and maintained;
Smooth flow path, almost zero flow resistance;
Soft sealing seat with credible sealing property which can achieve zero leakage;
Anti-static device;
Flexible seat with automatic pressure release structure;
Fireproofing structure;
Ball core with hole, and when valve is open it can balance the pressure in the valve and protect the seat.

Application standard :

Quality system - TS, ISO9001
Design - refer to GB12338 MSS-SP-68
Face to face - refer to GB12221-89
Flange standard - JB/T79.1-94, ANSI
Test standard - GB/T4213-2008, API598

Antistatic Structure

Download Detail File : Click Here

Main Technology Data

DNmm	DN15~DN400(please contact us for DN400 above)	--	--
PN	6, 25, ANSI150,300,400	--	--
Actuator type	ATQ type electric actuator	--	--
Supply voltage	AC220V, AC380V, AC110V	--	--
Control signal	Electric or air ON/OFF signal	--	--
Allowable fluid temperature	Nonmetal soft sealing	RPTFE seat	-20~+180^oC
	--	PPL seat	-20~+250^oC
	Hard sealing	CGM seat	-40~+400^oC
	--	(304,316L)+STL overlaying seat	-60~+500^oC
Rated stroke	Shut-off type0-90^orotary angle	--	--
Ambient temperature	-20½70^oC (The product should be specially produced or configured if over this range)	--	--
Inherent flow characteristic	Quick open	--	--
Material of main parts	See Breakdown Drawing of valve and Table of Material for parts	--	--
Leakage	Soft sealing	RPTFE sealing	Class
	PPL sealing	Class	--
	Hard sealing	Metal hard sealing	Class IV (class VI can be met according to client’s demand

Material Of Main Parts (basic Type For Reference Only)

Name of parts	Material	No.	Name of parts	Material
Master body	WCB	7	Seat	PTFE
Auxiliary body	WCB	8	Seat retainer	304
Core	304	9	Spring	60Si2Mn
Gland	304	10	Lower stem	2Cr13
Packing	PTFE	11	Bottom flange	25#
Upper stem	316L	--	--	--

Optional Material (Supply As Your Request)

Name of parts	Material	Recommended temp. range
Master and auxiliary body	WCB	-40+450
	CF8	-60+580
	316L	-60+580
Core	304	-60+580
	316	-60+580
	316L	-60+580
--	STL overlaying(granule media, high temperature and pressure) overlaying STL overlaying	-60+580
Stem	304	-60+580
Stem	316	-60+580
Packing	PTFE	-20+180
Packing	Graphite	-20+500
Seat	RPTFE	-20+180
	PPL	-20+250
	(304,316L)+STL	-60+500

Internal Structure(Float Ball Valve)

Download Detail File : Click Here

Internal Structure(Trunnion Ball Valve)

Download Detail File : Click Here

Differential Pressure For Standard Configuration Of Ball Valve & Electric Actuator

Size of valve	Maximum close pressure100KPa	--	Handwheel model (optional)
--	ATQ type electric actuator(standard configuration)	--	--
--	Body class PN16	Body class PN40	--
DN15	19.6	50.0	Wrench
DN20	19.6	50.0	--
DN25	19.6	50.0	--
DN32	19.6	50.0	--
DN40	19.6	50.0	--
DN40	19.6	50.0	--
DN65	19.6	50.0	HFS01
DN80	19.6	37.3	HFS01/HFS02
DN100	19.6	37.3	HFS02/HFS03/HFS04
DN125	19.6	32.3	--
DN150	19.6	21.0	--
DN200	12.4	23.2	--
DN250	11.7	11.7	--
DN300	6.5	6.5	HFS04

Valve Installation Diagram

Download Detail File : Click Here

Installation Diagram For Valve, Handwheel And Pipes：

Download Detail File : Click Here

External And Installation Dimensions (Please Refer To The Following Table For Installation Dimensions At PN1.6MPaA (When The Valve Does Not Meet The Standard Configuration, The Size Is Subject To Change Based On Actual Size))

DN	d1	L	D2	D1	D	b	f	H	L1	Bolt Qty.
Float ball valve
15	1/2	13	108	45	65	95	14	2	298	150	4-M12	14
20	3/4	19	117	55	75	105	14	2	307	--	4-M12	14
25	1	25	127	65	85	115	14	2	270	--	4-M12	14
32	1-1/4	32	140	78	100	135	16	2	280	--	4-M16	18
40	1-1/2	38	165	78	110	145	16	3	306	170	4-M16	18
50	2	51	178	85	125	160	16	3	452	--	4-M16	18
65	2-1/2	64	190	100	145	180	18	3	586	229	4-M16	18
80	3	76	203	120	160	195	20	3	631	229	8-M16	18
100	4	102	305	135	180	215	20	3	695	259	8-M16	18
125	5	127	356	155	210	245	22	3	780	259	8-M16	18
150	6	152	394	185	240	280	24	3	840	--	8-M20	23
Trunnion ball valve
200	8	203	457	265	295	335	26	3	891	297	12-M20	23
250	10	254	533	320	355	405	30	3	980	319	12-M22	25
300	12	305	610	375	410	460	30	4	1479	319	12-M22	25
350	14	335	686	435	470	520	34	4	1557	--	16-M22	25
400	16	387	762	485	525	580	36	4	1863	478	16-M27	30
450	18	438	864	545	585	640	40	4	1982	562	20-M27	30
500	20	489	914	608	650	705	44	4	2128	562	20-M30	34
600	24	591	1067	718	770	840	48	5	2070	633	20-M36	41
