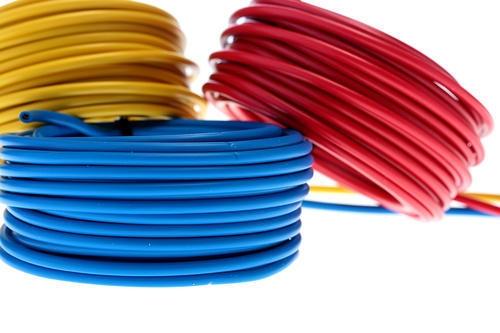

Electric cable

1-pvc insulated flexible wire single cable
standard:bs6004;iec60227.
Application: used for wiring of switch control ,relay and instrument paneis of power switch-gear,and such as internal connections in rectifier equipment and in motor starters and controllers, where the temperature of 70°c. Construction: plain annealed copper conductor stranded, pvc insulated.
Voltage:300/550v;450/750v.
Insulation color :red, green, blue, black, yellow, brown, green/yellow.
Package: plastic films, ploy bag, paper box, plastic spool.
2-pvc insulated flexible round multi-core cable
standard: bs6500;iec60227, vde0250.
Application:
suitable for application in household, kitchens and offices in dry and damp conditions, indoor and outdoor, electrical tools, washing machine, air-conditioner and vacuum cleaner etc.
Construction:
flexible annealed copper conductor, pvc insulated and pvc sheathed.
Voltage:
300/550v;450/750v,
600v/1000v.
Insulation color:
red, green, blue, black, yellow, brown, green/yellow.
Sheath color: white, grey, black, orange.
Package:
plastic films,ploy bag, papef box, plastic spool.
3-speaker cable
standard: iec227,ce, iso certificated.
Application: used in connecting for audio appliances, home appliances, small electric tools and instruments.
Construction: stranded copper conductor or tinned copper, pvc insulated, twin parallel or twisted.
Rated voltage:300/500v.
Package: coils with plastic film and wooden pallet. Or plastic/wooden reel
4-welding cable
standard: iec245-81.
Application: used for welding machine or power machine.
Construction: copper strands conductors, rubber /epdm insulation.
Rated voltage: 600/1000v.
Color: black, white, orange.
Package: coils with plastic film and wooden pallet. Or plastic/wooden reel.
5-electrical cable
standard: iec,bs,vde,as/nzs,icea,jis and so on, designing and manufacturing special power cable according to the
other standards required by the customer
rated voltage: 0.6/1kv,1.8/3kv ,8.7/15kv, 26/35kv
application::the products is mainly used for electric transmission and transportation in buildings, subways, power
stations, entertainment places, industrial entertainment places ,industrial enterprises and sea petrol platform etc, where
a high intensity of cable laying and a strong flame-retardant ability are required.
6-solar cable
rating:voltage: ac600/1000v dc1000/1800v temperature:-40°c-- 125°c.
Material:
(1)conductor:tinned annealed copper
(2) insulation:125°c xlpo , black
(3) jacket:125°c xlpo , black or red
application: specifically designed for connecting photo-voltaic system components inside and outside of building and equipment with high mechanical requirements and extreme weather conditions for permanent installations.
General characteristics: cable made of electron-beam cross-linked insulation and coating; high resistance against heat, cold, oil, uv and weather; with improved reaction in case of fire .
