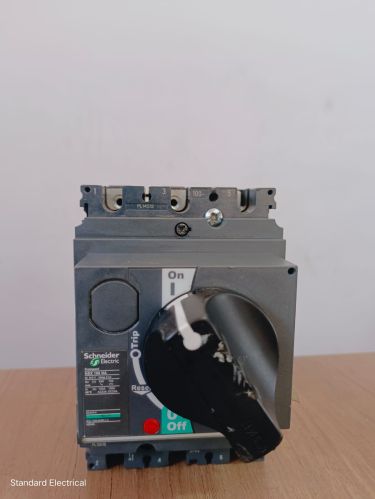

Electric Compact Nsx100 3 Pole Switch Schneider Switch Disconnector

Brand: Schneider Electric
Series: ComPacT NSX
Model: NSX100 NA (Part No. LV429629)
Type: Switch Disconnector (Isolator)
Poles: 3 Pole
Rated Current: 100 Amps
Condition: Refurbished & Fully Tested
Supplied By:Standard Machinery
Application: Ideal for industrial power distribution, motor control centers, and electrical panels

Key Features:

• Designed for reliable isolation of electrical circuits

• Complies with IEC 60947-3 standards

• Compact design for space-saving installations

• Suitable for both AC and DC applications

• Front-mounted toggle for easy operation

• Robust construction ensuring long service life

Technical Specifications:

• Rated Operational Voltage (Ue): Up to 690V AC (50/60 Hz)

• Rated Insulation Voltage (Ui): 800V AC

• Rated Impulse Withstand Voltage (Uimp): 8 kV

• Conventional Free Air Thermal Current (Ith): 100A at 60°C

• Short-Circuit Making Capacity (Icm): 330 kA with upstream protection

• Mounting: Fixed

• Dimensions (H x W x D): 161 mm x 105 mm x 86 mm

• Weight: Approximately 1.8 kg

Standards & Certifications:

• IEC 60947-3

• KEMA

• ASEFA

• ASTA

Environmental Conditions:

• Operating Temperature: -25°C to +70°C

• Storage Temperature: -50°C to +85°C

Availability: In Stock
MOQ: 1 Unit
Shipping: Worldwide delivery available
