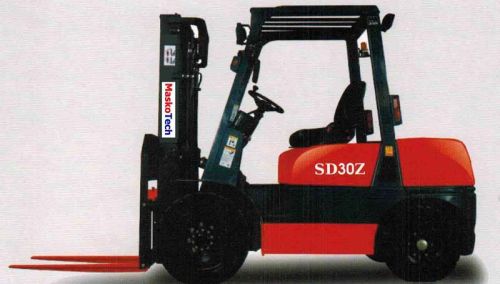

Electric & Diesel Engine Forklift

Sold By : Masko Tech Engineers

Product Specifications

Supply TypeManufacturer, Exporter

Product Overview

Our company holds expertise in manufacturing and supplying pristine Electric & Diesel Engine Forklift. Available in different models holding different capacities, our Electric & Diesel Engine Forklift is precisely designed using optimum grade raw material. Ensuring easy operation, our Electric Forklift runs on electric power source and has maximum ground clearance of 120 km/hr. On the other hand, the Diesel Engine Forklift runs on diesel and is appreciated for its efficiency and durability.

Capacity Range

Electric Forklift : 1500 to 3500
Diesel Engine Forklift : 1500 to 10,000 kgs

Technical Specifications

Model	--	SD/SG-15Z	SD/SG-20Z	SD/SG-25Z	SD/SG-30Z	SD/SG-50Z	SD-60Z	SD-70Z	SD-80Z	SD-100z
Capacity	Kg	1500	2000	2500	3000	5000	6000	7000	8000	10000
Load center	Mm	500	500	500	500	600	600	600	600	600

Power type

Left height	Mm	3000	3000	3000	3000	3000	3000	3000	3000	3000
Fork size	Mm	1070	1070	1070	1070	1220	1220	1220	1370	1370
Mast tilting angle (F/R)	Deg	6º/-12º	6º/-12º	6º/-12º	6º/-12º	6º/-12º	6º/-12º	6º/-12º	6º/-12º	6º/-12º
Total width	Mm	1065	1158	1158	1290	1450	2010	2010	2060	2260
Mast height	Mm	2100	2100	2100	2100	2190	2500	2625	2700	2850
Overhead quard height	Mm	2100	2115	2115	2140	2190	2450	2450	2520	2540
Min. Turning radius	Mm	1950	2170	2250	2415	3050	3420	3485	3735	3900
Total length	Mm	3305	3530	3575	3670	4530	4855	4915	5410	5565
Ground clearance (mast)	Mm	120	120	120	120	140	200	200	260	240
Travel speed with / without load	km/h	16/17	17/18	18/19	18/19	20/22	26/30	26/30	26/30	26/30
Max. Grade ability	% (tane)	26/20	23/20	25/20	23/20	23/19	3520	30/20	26/22	24/21

Technical Specifications (1.5 Ton To 3.5 Ton)

Model	--	SB15Z	SB20Z	SB25Z	SB35Z
Capacity	Kg	1500	2000	2500	3500
Load center	Mm	500	500	500	500
Power type	--	Battery	Battery	Battery	Battery
Left height	Mm	3000	3000	3000	3000
Fort size	Mm	1070	1070	1070	1070
Mast tilting angle (F/R)	Deg	6º/-12º	6º/-12º	6º/-12º	6º/-12º
Total width	Mm	1115	1200	1270	1315
Mast height	Mm	2100	2100	2100	2080
Overhead quard height	Mm	2040	2150	2150	2150
Min. Turning radius	Mm	2085	1900	2100	2420
Ground clearance (mas)	km/h	105	120	120	120

Company Overview

Manufacturer Of Hydraulic Power Packs, Hydraulic Bottle Jack, Flat Plain RAM Jack, Hydraulic Toe Jack, Electric Stacker, Semi Electric Stacker, Manual Stacker, Walkie Reach Stacker, Ratchet Cable Drum Screw Jack, without Ratchet Cable Drum Screw Jack, Gearbox Trolley, Two Post Car Lift, Four Post Car Lift, Centre Post Car Lift, Air Compressor.

Business Type Manufacturer / Exporter / Supplier
Number of Employees 6 - 20
Year of Establishment 1968
