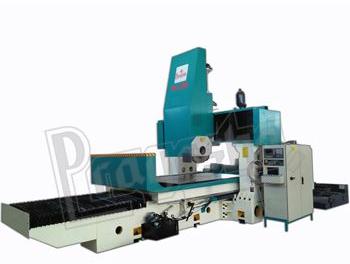

Double Column CNC Surface Grinding Machine, For Shaping Metal., Power : 1-3kw, 3-6kw, 6-9kw, 9-12kw

Get Latest Price

Driven TypeElectric
ConditionNew
Power1-3kw, 3-6kw, 6-9kw, 9-12kw
Automation GradeAutomatic
ApplicationShaping Metal.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

PRAYOSHA INDUSTRIES

Amraiwadi, Ahmedabad, Gujarat

4.6/5

(27)

View Number

Member Since 16 Years
Nature of Business Retailer
GST No. 24AAVFP6384K1ZE

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

ApplicationShaping Metal.
ConditionNew
Power1-3kw, 3-6kw, 6-9kw, 9-12kw
Driven TypeElectric
Automation GradeAutomatic

Our company holds specialization in manufacturing and supplying Double Column Surface Grinder Machine. The Double Column Grinder Machine consist of automatic lubrication system and saddle system design to suit the demands of esteemed customers. This machine features operating systems like L.M Guide, Ball Screw and Servo Motor. These machines are made from premium quality material in variegated technical specifications and capacities to cater to the exact demands of clients.

Features:

Machine base is a one-piece casting.
Machine leveling can be as easy as turning a bolt on the adjustable pad.
Internal & External Grinding Capability
High Tensile Strength
High Performance
Wide table with large clearance for job
Shapes can be ground with four axis

MODEL NO.			C2X – 6410-0
GENERAL
Table size	( L x W )	mm	1600 x 2500
Grinding range	( L x W )	mm	1660x2500
Max. grinding height with new wheel and without magnetic chuck		mm	500
Distance from Table to spindle centre
Min.		mm	65
Max.		mm	700
Max. grinding width with relief at the front and rear		mm	1675
Max. grinding width without relief at the front and rear		mm	1600
Distance between column		mm	1800
Accuracy			As Per IS 2743
Control ( 3 Axis )			Mitsubishi/Siemens
Programming		Standard ‘G’ code and ‘M’ code, With NC File
GRINDING WHEEL
Diameter	Max.	mm	500
	Min.	mm	280
Width	Std.	mm	75
	Optional	mm	100
Bore		mm	203.2
Wheel spindle (With AC VFD)		kW	15
		(HP)	20
VERTICAL SLIDE (X-AXIS)
Stroke		mm	550
Rapid traverse		m/min	3
Min. programmable increment		mm	0.001
TRANSEVERSE SLIDE (Y-AXIS)
Stroke		mm	1800
Rapid traverse		m/min	3
Min. programmable increment		mm	0.001
TABLE (Z-AXIS)
Max. Longitudinal traverse		mm	2700
Infinitely variable speed		m/min	0 – 18
Max. weight of the job
(ii) with chuck		Kg	1000
(ii) without chuck		Kg	2500
OPERATING SYSTEM
X-Axis		With L.M Guide, Ball screw, and Servo Motor
Y-Axis		With L.M Guide, Ball screw, and Servo Motor
Z-Axis		With L.M Guide, Ball screw, and Servo Motor
Repeatability for 6 consecutive readings		Mm	0.002
