Electric Dryer

Usage:　Far infrared tunnel dryer use far IR light dry inks printed on paper and clothing.
Drying oven with IR conveyer can improve efficiency with mass production garment printing.
Specification：

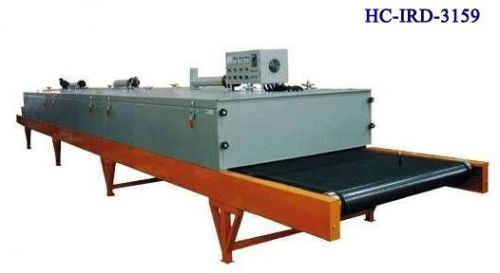

HC-IRD-3159　　Far infrared conveyer tunnel dryer
1) Conveyer width: 31.5 inch (800mm)
2) Heat length: 59.0 inch (1500mm)
3) Body length: 94.5inch (2400mm)
4) Max height of product: 4inch (100mm)
5) Total power: 7.2KW
6) Fan power: 45W/220V*2
7) Motor power: 90W/220V
8) Heat lamp power: 800W/220V
9) Lamp: 9pcs
10) speed：0~10m/minstepless speed regulation
HC-IRD-39118　　Far infrared tunnel dryer
1) Conveyer width: 39.3inch (1000mm)
2) Heat length: 118.1inch (3000mm)
3) Body length: 177.1 inch (4500mm)
4) Max height of product: 4inch (100mm)
5) Total power: 15KW
6) Fan power: 45W/220V*2
7) Motor power: 90W
8) Heat lamp power: 1000W
9) Lamp: 15pcs
HC-IRD-39188　　Drying Oven with IR conveyer
1) Conveyer width: 39.3inch (1000mm)
2) Heat length: 188.9inch (4800mm
3) Body length: 259.8 inch (6600mm)
4) Max height of product: 4inch (100mm)
5) Total power: 22KW
6) Fan power: 45W/220V*3
7) Motor power: 90W
8) Heat lamp power: 1000W
9) Lamp: 22pcs
HC-IRD-39236　　
1) Conveyer width: 39.3inch (1000mm)
2) Heat length: 236.2 inch (6000mm)
3) Body length: 295.2 inch (7500mm)
4) Max height of product: 4inch (100mm)
5) Total power: 30KW
6) Fan power: 45W/220V*3
7) Motor power: 90W
8) Heat lamp power: 1000W
9) Lamp: 30pcs.
