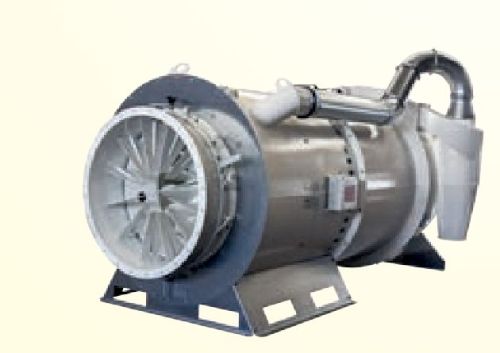

Electric Automatic Dust Aspiration System, Voltage : 220V

SYSTEM Dust appears in all seed plants, particularly at transfer points where the seeds are conveyed from one machine to another. Dust and bee wings loosened from the seed create an unpleasant and dangerous environment for the workers, including the risk of a dust explosion. Therefore a correctly dimensioned and integrated aspiration system is an absolute must in any modern seed plant. The aspiration systems are equipped with filter plants or cyclofans which separate the air before discharge into the atmosphere. Dust aspiration piping must be properly designed according to air quantity, air velocity and pressure. Fans create the negative pressure that extracts the air from all extraction points. The air-locks discharge the dust either to bags or to a conveying system leading to a dust collector. Red dust from the treatment process requires separate dust filters. These filters are equipped with collection baskets, since the toxic waste must be disposed of in a safe manner.
