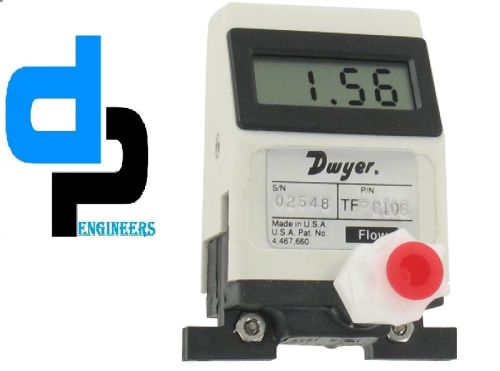

Chrome Finish Electric Stainless Steel Dwyer Instruments TFP-GI06, For Residential, Industrial, Laboratory

Dwyer Instruments TFP-GI06

Product Details:

Minimum Order Quantity4 Number

BrandDwyer USA

Current Rating11.5 to 15 VDC.

Media TypeClean Dry Gases Compatible With Wetted Materials.

Range Setting.42 to 2.1 SCFH (0.2 to 1 LPM), 1/8" OD connection

Electrical ConnectionFour-pin power and signal connector. A power adapter or mating cable required for operation. See Acc

Model Name/NumberTFP-GI06

Power/Voltage11.5 to 15 VDC.

Weight0.23 lb (101 g).

Country of OriginMade in India

Dwyer Instruments TFP-GI06

TFP-GI Gas Turbine Flow Meter Range .42 to 2.1 SCFH

Order #: TFP-GI06

Mfg #: TFP-GI06

Series TFP-GI Gas Turbine Flow Meters are suitable for a wide variety of industrial, commercial, and laboratory flow applications. These meters utilize a turbine wheel and electro-optical detection to convert flow rates into a linear 0 to 5 VDC output signal for recording and data logging. A 3-1/2 digit LCD informs the user of the actual flow rate. A power adapter or mating cable assembly is required for operation.

Product Highlights

Range .42 to 2.1 SCFH (0.2 to 1 LPM), 1/8" OD connection

SPECIFICATIONS

Service:Clean Dry Gases Compatible With Wetted Materials.

Wetted Materials:PPS, acetal, sapphire, glass, epoxy, and fluoroelastomer.

Accuracy:±3% of Full Scale.

Linearity:±3% of Full Scale.

Repeatability:±0.5% of Full Scale.

Temperature Limits:41 to 131°F (5 to 55°C); Storage: 32 to 158°F (0 to 70°C); Sensitivity: ±0.2% of Full Scale per °C.

Pressure Limits:40 psig (2.8 bar).

Process Connection:Compression fitting, see Catalog page.

Power Requirements:11.5 to 15 VDC.

Power Consumption:35 mA @ 12 VDC.

Output Signal:0 to 5 VDC: Minimum 2.5 kΩ load.

Electrical Connections:Four-pin power and signal connector. A power adapter or mating cable required for operation. See Accessories page.

Display:LCD, 0.39" (10 mm) digits (only in LPM).

Enclosure Rating:IP10 (NEMA 1).

Weight:0.23 lb (101 g).

Agency Approvals:CE.
