Specification:
Structure Specifications

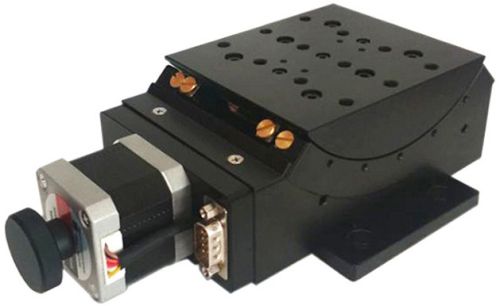

Item Number: PT-GD303
Rotation Range: ±45°
Platform: 90mm × 104mm
Drive Mechanism: Worm Gear
Travel Guide: Crossed Roller Bearing
Worm Gear Ratio: 280 : 1
Height of Rotation Stage: 96±0.2 mm
Stepper Motor (1.8°): 42BYG - Stepping Motor with 2-Phases & 1.8° of Step Angle
Material – Finish: Aluminum Alloy -Anodized
Load Capacity: 10Kg
Dead Weight: 2.45kg
Accuracy Specifications
Design Resolution: ≈0.005°≈18″(Non-MS Driver); ≈1″(20MS Drive)
Rotation Center Deflection Accuracy: 0.03 mm
Velocity: 7°/sec
Repeatability: ±3”
Absolute Accuracy: ±8”
Backlash: ±3”
Lost Motion: 3″
Product details:
Advantage:
.
PDV has many different motorized linear translation stage including motorized translation stage, motorized linear stage, High Precision Motorized Goniometer Stages High Precision Motorized XY Stages、 High quality China Motorized Linear Stage. They can be any combination, building block structure, can satisfy any scene usage requirement.
