Electric Hoist

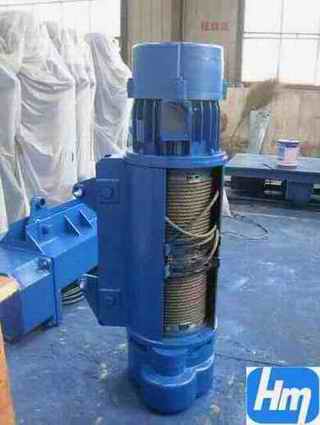

We are offering md1 electric hoist.
md1 model electric wire rope hoist is small-sized lifting equipment, which can be mounted on gantry crane, overhead crane and jib crane. With little modification, it can also be used as a winch. It is widely used in factories, mines, harbors, warehouses, goods yards, shops, etc. It is necessary equipment to increasing working efficiency and improving labor conditions.
cd1 model electric hoist has only one speed, it can meet general requirements. Md1 model electric hoist provides two speeds, normal and low speed, low speed is one over ten of normal speed. When working at low speed, it can meet the strict requirements of precise loading and unloading, sand box mold, machine tools maintenance etc. So, md1 model electric hoist is used more widely than cd1 model.
md1-electric hoist technical parameters：
model lifting capacity(tons) lifting height(m) lifting speed(m/min) travel speed(m/min) wire rope
rope dia. specification
md1 0.25 3/6/9 8/0.8 20 3.6mm 6×19
0.5 6/9/12 8/0.8 20 4.8mm 6×37+1
1 6/9/12/18/24/30 8/0.8 20 7.7mm 6×37+1
2 6/9/12/18/24/30 8/0.8 20 11mm 6×37+1
3 6/9/12/18/24/30 8/0.8 20 13mm 6×37+1
5 6/9/12/18/24/30 8/0.8 20 15.5mm 6×37+1
10 6/9/12/18/24/30 7/0.7 20 15.5mm 6×37+1
16 6/9/12/18/24/30 6/0.6 20 24mm 6×37+1
20 6/9/12/18/24/30 3.5/0.3 20 20mm 6×37+1
