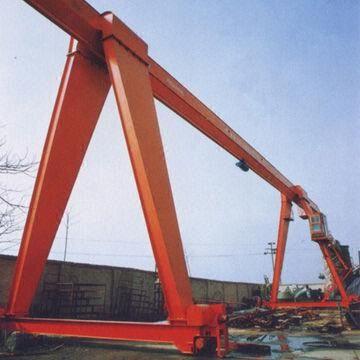

Electric Hoist Gantry Crane

We are offering electric hoist gantry crane.specifications:
lifting capacity: 16t
span: 12 to 30m
lifting height: 9m
two options to control:
control on the ground:
traveling speed: 20m/minute
motor power: 6.3 x 2kw
control in the cabin:
traveling speed: 30, 40m/minute
motor power: 8.5 x 2kw
reducer: zsc600
wheel diameter: 500mm
electric hoist:
electric hoist type: cd1
lifting speed of the electric hoist: 3.5m/minute
traveling speed: 20m/minute
motor power of the lifting: 13kw
motor power of the traveling: 0.8 x 2kw
working conditions:
working class: a5
working temperature: -20 to +40ã�â°c
power supply: 3 phase, 380v, 50hz
recommended steel track: p38 and p43
wheel load: 150 to 190kn (maximum)
guarantee:
strictly control on the processing and inspecting
one year warranty from assembling the products
design and assembling service can be provided
other:
customized requirements about the products are accepted
lifting capacity, working place, span, speed requirement, power source and so on should be provided.
