Contact SupplierMain feature:

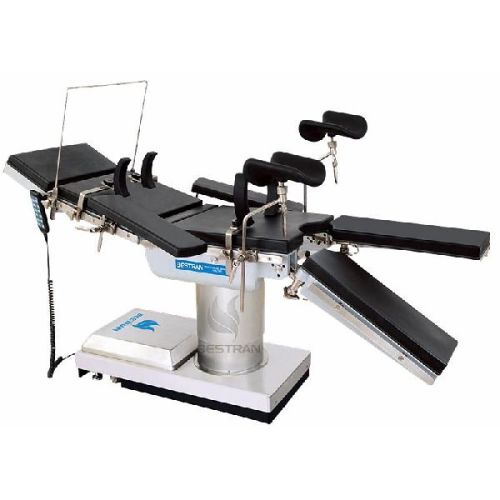

extra low design 580mm min height,longitudinal movement 250mm,horizonal rotation of tabletop 180°,with emergency power,suitable for x-ray and c-arm
dimension of table top:
overall dimension of table: 2050*500*580-930mm
dimension of section:
head section:250×500mm;back section:465×500mm;waist section:75×500mm;seat section:550×500mm; leg section:600×240mm
range of movements:
1)reversed trendelenburg≥20°rendelenburg≥15°
2)lateral til≥15°
3)backward and forward movements≥250mm
4)adjustment of sections:
5)head section raised from the horizontal:≥45°
6)head section lowered from the horizonal: ≥90°
7)back section raised from the horizontal≥75°
8)back section raised from the horizontal: ≥30°
9)section lowered from the horizontal:≥90°
10)leg section opened:≥90°
11)waist bridge rise(when optional)≥80mm
12)horizonal rotation of tabletop:0~180°
13)lifting speed: 4~16mms
14)safe working load135kg
15)device safety sorti b
16)ingress protection:ipx4
17)power:(ac)220v,50hz
18)battery capacity is 14 ah battery capacity ≥ 2.4ah.
