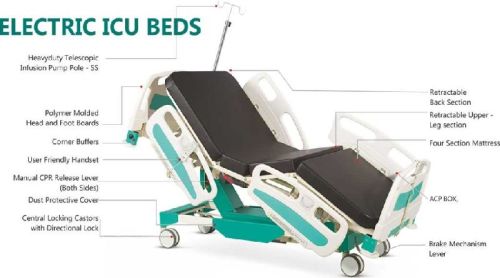

VSInternational Electric ICU Beds

Technical Specifications:

• Overall approximate dimension (buffer-to-buffer): 2200 mm L x 1020 mm W
• Bed frame approximate dimension: 2105 mm L x 930 mm W
• Mattress approximate dimension: 1980 mm L x 880 mm W
• Height adjustment (approximate, without mattress):
• Minimum: 485 mm to Maximum: 865 mm
• Backrest, upper leg, height adjustment, trendelenburg and reverse trendelenburg  adjustments electrically operated on four electro mechanical actuators with user friendly handset
• Standard Features:

  • Manual Emergency CPR with instant lowering of backrest obtained with the help of quick release mechanism lever provided on both sides of the bed
  • Battery backup facility with built in battery charger
  • Four section uniformly perforated mild steel CRCA sheet top
  • Top and base frame made from mild steel tubes
  • Easily removable Polymer molded head and foot boards
  • Polymer molded safety side railings (set of four)
  • 150 mm dia  heavy duty  Central Locking Castors with Directional Lock  having Brake Mechanism Lever
  • Dust protective cover
  • Buffers at four corners
  • Heavy duty telescopic Infusion Pump pole with two hooks – SS
  • Urine bag holder
  • Oxygen cylinder holder
  • Provision for Lifting Pole
  • Four section 100 mm thick PU foam mattress cover with rexine
  • Pretreated and epoxy powder coated finish
  • Supplied in semi knocked down condition
