Electric Automatic LLDPE Film Plant, For Industrial, Voltage : 110V, 220V, 380V, 440V, 580V

Automatic GradeAutomatic
Driven TypeElectric
ConditionNew
ApplicationIndustrial
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Product Details

ApplicationIndustrial
Country of Origin110V, 220V, 380V, 440V, 580V
ConditionNew
Automatic GradeAutomatic
Driven TypeElectric
Total Carbohydrate5years

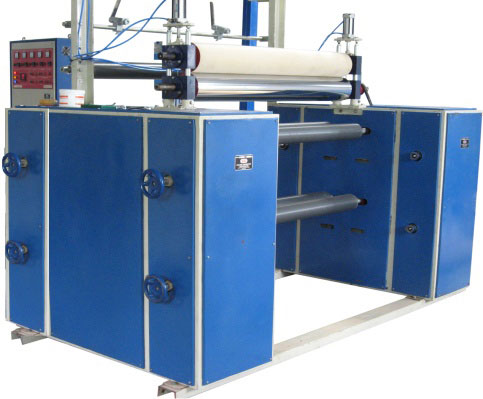

Your search for Jailaxmi LLDPE Film Plant ends with Jailaxmi Engineering Corporation, Jailaxmi is a name to rely upon. Jailaxmi provide LLDPE Film Plan, which can be used to efficiently manufacture the packing bags for different contents. Jailaxmi LLDPE Film Plant is made from special nitro alloy steel that ensures its long life.
Features

Different application for Packing
Nitrided Screw and Barrel made out from special nitro alloy steel for long life.
Helical Gear Box with inbuilt Thrust Bearing.
Specially designed spiral type die
PID Temperature Controller.
AC Motor Synchronization.

Specifications

Model	JEC-1150 Twin Die	JEC-1265
Screw Diameter	50 mm	65 mm
Extruder Drive (AC variable)	11 KW	18.5 KW
L/D Ratio	32 : 1	32 : 1
Max Output(Kg/hr)	45-50	70-80
Lay flat Width	12"	44"
Minimum Gauge	40	40
Dies (Spiral Type) mm	40 & 100	75, 125 & 175
Nip Roll Size	16"	48"
Winder	Two Station	Four Station
Connected Load	28 KW	45 KW
Overall Dimensions(ft.)	15' L X 10' W X 12' H	22' L X 14' W X 17' H
