Automatic Electric Microprocessor Flame Photometer, For Laboratory Use

Get Latest Price

Automatic GradeAutomatic
Driven TypeElectric
Brand NameVSI
ApplicationLaboratory Use
Supply TypeManufacturer, Exporter, Supplier, Importer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

VSI Electronics Pvt. Ltd.

Sector 74, Mohali, Punjab

4.5/5

(29)

View Number

Member Since 14 Years
Nature of Business Manufacturer
GST No. 03AACCV0438N1ZC

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Number Of FlowerFlame Photometer
ApplicationLaboratory Use
Automatic GradeAutomatic
Driven TypeElectric
Country of OriginIndia
Brand NameVSI

VSI Electronics Private Limited is an established manufacturer, supplier and exporter of Digital Flame Photometers from India. The Digital Flame Photometers offered by the company are high on quality, performance and are made of the finest quality raw materials, making them durable and long lasting. These Digital Flame Photometers are used for determination of Sodium, Potassium, Lithium and Calcium in blood and soil samples.

Various types of Flame photometers such as Microprocessor Based, Digital Flame Photometers & Digital Clinical Flame Photometers are available. The most advanced technology is used to manufacture these Flame Photometers. Advanced features like PC connectivity through RS232 serial port connection to the computers is also available. The simultaneous measurement of two or four elements is available with single aspiration of sample.

VSI Electronics Private Limited is one of the most reputed Flame Photometer Exporters in the market. A wide choice of flame photometers is available to be used in the medical clinical labs, soil testing labs, milk plants etc.

Models Available: VSI-FP1, VSI-FP2, VSI-603, VSI-604 and VSI-605

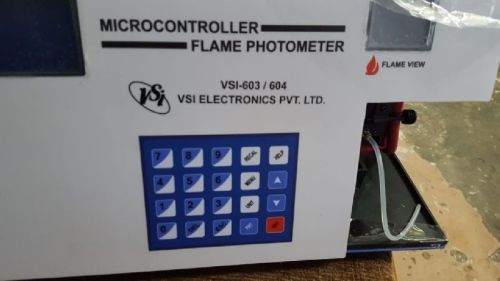

Microprocessor Flame Photometer (VSI-603) with two Filters - Sodium (Na) & Potassium (K). Two Elements measurement in a single aspiration. It has 5-Point Calibration, Direct Readout in ppm & meq/l, Auto Filter Selection, Auto Ignition, Graphical LCD Display, Two Element measurement in a Single Aspiration, Auto Gas Cut Off facility, RS 232 Interface PC Software, printer attachment facility with compressor and other accessories for lab & medical use.

Microprocessor Flame Photometer (VSI-604) with four Filters - Sodium (Na), Potassium (K), Calcium (Ca) & Lithium (Li). Four Elements measurement in a single aspiration. Calibration curve fit routines first order and second order. Data displayed in concentration units i.e. ppm & meq, automatic filter selection; auto calibration feature. Printer attachment, PC connecting compatibility, Sample data storage more than 500 results. Alphanumerical key board for easy data entry. Auto Ignition, Graphical LCD Display thus easy to read, Curve calibration using up to 5 standard, multiple calibration curve saving facility, Stainless steel burner. Auto Gas Cut-Off facility in case of power failure. Provided with Four Filters, Compressor and other accessories for lab & medical use.

SALIENT FEATURES :

Direct Results in ppm and meq
Auto Ignition Facility
Auto Gas Cutoff Facility
Auto Flame Failure Detection
Setup Data Storage Facility
Sample Data Storage Facility
Four Measurements in Single Aspiration (In Model VSI-604)
Curve Calibration Programmability Using Maximum of 5 Standards
Multiple Calibration Curve Saving Facility
Data Processing Through Curve Fitting Techniques, Least Square, Quadratic
Re-standardization with One Standard
Online Help Key
Batch-Wise, Date-Wise and Individual Result Data Printing
RS232 Interface to download data to PC
Useful for Medical & Soil Testing

Note: Appearance & Specifications are subject to change due to continuous development.

Technical Specifications Of Microprocessor Flame Photometer (VSI-603 & VSI-604)

Mode	General
Range - Na	General: Na: 0–100 ppm Upto 250 meq/L, 1: 100 dil //Serum: Na: 0–200, 1: 100 dil // Urine: Na: 0–250, 1: 100 dil
Range - K	General: K: 0–100 ppm Upto 250 meq/L, 1: 100 dil // Serum: K: 0–10, 1: 100 dil // Urine: K: 0–100, 1: 100 dil
Range - Ca	General: Ca: 0–100 ppm Upto 250 meq/L, 1: 100 dil // Urine: Ca: 0–10, 1:2 dil
Range - Li	General: Li: 0–100 ppm Upto 250 meq/L, 1: 100 dil // Serum: Li: 0–2, 1:5 dil
Sensitivity	General: Na : 0.5 ppm, K : 0.5ppm, Li: 0.5 ppm, Ca: 15 ppm
Filters	VSI-603: Two Filters – Sodium (Na) & Potassium (K) VSI-604: Four Filters – Sodium (Na), Potassium (K), Calcium (Ca) & Lithium (Li)
Resolution	0.1 ppm/meq
Reproducibility	< 1% coefficient of variation for 20 consecutive samples using 10 ppm Na set as maximum standard
Curve Fit Accuracy	< 2% error when 3 ppm Na/K and 5 ppm Li are set as max std.
Display	128 x 64 Graphical LCD
Average Time	In built in software
Flame System	LPG and dry oil free air
Detector	Silicon Photodiode
Calibration	Up to 5- point calibration with curve fitting software
Gas Control	Adjustable with knobs
Flame Failure	Auto detection
Gas Cut-off	Automatic on power failure
Ignition System	Auto ignition
Printer	Provision for attachment of dot matrix printer
RS232C	Provision for data transfer to PC
Power	230 V +/-10% AC, 50 Hz
Dimensions	285 x 255 x 210 mm (L x B x H) approx.
Weight	7.5 kg approx.
COMPRESSOR UNIT
Air Supply	By oil free mini compressor unit with pressure regulator
Combustion	LPG controlled by precision regulator
Power	230 V +/-10% AC, 50 Hz
Dimensions	290 x 255 x 210 mm (L x B x H) approx.
Weight	8 Kg approx.
STANDARD ACCESSORIES	In-built Filters (2/4) as per model, Sample Holders-5 Nos., Air & Gas Tubing-1 Set, Capillary Tubes-3 Nos., Mains Lead-1 No., RS-232 Cable-1 No. (Optional Wherever Printer Interface is provided) & Operation Manual.
