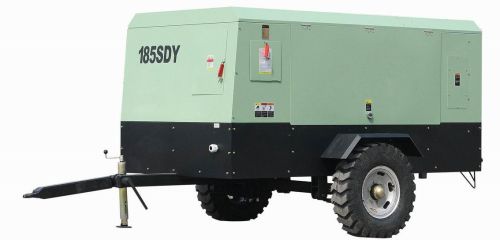

Electric Mobile Screw Air Compressor, Brand Name : RP

We are offering 185sdy-13 electric mobile screw
features：
1、compressor full range of choices are the german az, ghh, the company imported from italy tmc head. Cutting-edge technology from europe, optimized profile design, high accuracy and less internal leakage, high efficiency,
low power, low noise and high reliability features.
2、high totally enclosed air-cooled screw machine special motor, protection class ip54, insulation class f class.
3、the use of advanced "into the air," "just back" modular structure, without exhaust valve to effectively prevent oil back down
into the configuration regulator controller can be automatically adjusted steplessly 0-100% gas.
4、imported temperature control valve, automatic control and regulation of access to the host within the oil temperature, so as to
control exhaust gas temperature must be controlled in the range to prevent precipitation of moisture in the air compressor.
5、microcomputer controller for outdoor use, powerful, easy to operate a simple, achievable and computer unattended 24-hour multi-machine joint control. Complete automatic protection design, equipped with exhaust-temperature, exhaust overpressure, phase,-phase, under voltage leakage automatic protection.
6、germany famous (kta) flexible coupling, has great transmission torque, life reaching 10000 hours, greatly reducing maintenance
workload, and reduce maintenance costs. Vertical isolation structure built in saline air, centrifugal separation bezel, and gravity,
the mechanical collision three efficient separation at the same time, the three levels of collection and separation, higher oil and gas
separation efficiency, lower pressure loss, and a longer service life, ensure that the discharge of oil content ≤ 3ppm.
technical parameter：
model
volume
volume
discharge pressure (mpa)
discharge pressure (psi)
motor power(kw)
weight
dimension
oil content
flow m3/min
flow （cfm)
kg
(mm)
ppm
185sdy-13
21
742
1.3
188
185
3200
5100×1820×2180
≤5
