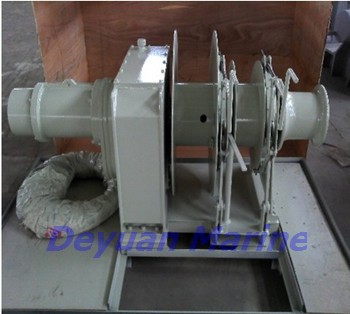

Electric Mooring Winch, Brand Name : deyuan

We are leading supplier of anchor, anchor windlass,anchor chain, made of grade 2 and grade 3 steel diameter from 12.5mm to 60mm , accessories, and ship mooring equipment product, which are all certificated by authorized classification societies , including ccs(p.r. China),lr(u.k.),gl(korea) and rs(russia) etc.
Name rated pull(kn) rate speed
(m/min) drum capacity
(m) motor power
(kw)
5kn electric mooring winch 5 ≥12 φ15*100 3/1.2
10kn electric mooring winch 10 ≥12 φ15*150 4.3/1.7
20kn electric mooring winch 20 ≥12 φ15*150 8.5/3.5
30kn electric mooring winch 30 ≥15 φ15*150 11/11/7.5
40kn electric mooring winch 40 ≥15 φ17.5*150 16/16/11
50kn electric mooring winch 50 ≥15 φ20.5*180 22/22/16
75kn electric mooring winch 75 ≥15 φ26*200 30/30/22
80kn electric mooring winch 80 ≥12 φ26*200 30/30/22
100kn electric mooring winch 100 ≥12 φ30*200 30/30/22
130kn electric mooring winch 130 ≥12 φ26*200 60/60/45
160kn electric mooring winch 160 ≥12 φ30*250 60/60/45
200kn electric mooring winch 200 ≥9.6 φ41*250 60/60/45
250kn electric mooring winch 250 ≥9.6 φ44.5*250 75
315kn electric mooring winch 315 ≥7.8 φ52*250 75
400kn electric mooring winch 400 ≥7.8 φ56*250 90
500kn electric mooring winch 500 ≥7.8 φ56*250 90
560kn electric mooring winch 560 ≥6 φ56*250 90
600kn electric mooring winch 600 ≥6 φ56*250 110
650kn electric mooring winch 650 ≥6 φ56*250 110
