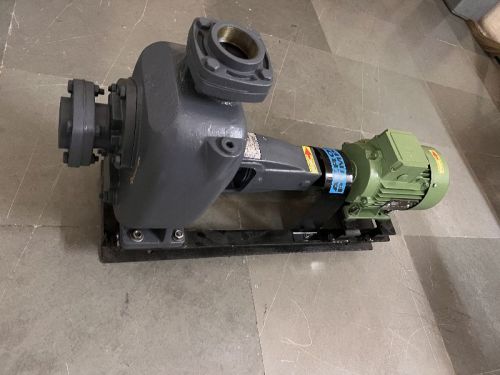

Aeron High Pressure Electric Mud Pump, For Industrial, Certification : ISI Certified

SPECIAL FEATURES:-

• Excellent quick automatic action without foot valve up to 8 mtrs.
• Automatic air release during priming.
• Back pull out design, so easy maintainance without disturbing pipe lines.
• Dynamically balanced rotating parts ensure less vibrations.
• Better efficiency because of good hydraulic design.
• Minimum parts, fast repairing at low cost, Also pump is available at economical rate.
• Available in Bare, Coupled, Monobloc, Belt driven & Engine driven version.
• Also offered pump with trolley / trailer to move it from one place to another.
• Monobloc pumps can be able to with stand with wide voltage fluctuations.
• Less expensive & easily available spares.
• Pumps can be fitted with mechanical seal as per customer's requirements.
• Very simple construction, only two moving parts.
• Easy inspection of impeller.
• Large diameter solids handled. up to 60 mm
• High resistance. to abrasive liquids the wear plate is easily replaced and impeller are also available with ceramic coating
• Easy to install: - only the suction hose is immersed in the liquid, The pump can be set up high and dry in the most convenient position for inspection and maintenance.
• Long Life :- The parts subject to wear can be easily replaced one or more times to restore the original performance.

APPLICATION:-

• Public utilities : For pumping muddy water, sewage, polluted liquids, solid and in swimming pool.
• Dewatering Basements, Trenches, Construction sites. Onboard shift, as bilge, for desk wash & engine cooling Tiles & Marble factories, effluent plants.
• Mobile Machinery : Cooling water for marine engines and shovels.
• Any application where priming is to be avoided.
• Industry : Transfer of clean or dirty neutral, acid or alkali liquids containing sand, mud or solids in suspension; clean or dirty low viscosity petroleum product or solvents; milk of lime, caustic soda; washing, cooling, circulation; smoke scrubbing; emergency duty.
• Civil engineering : Flood drainage; sewage pumping; fire fighting; recovery of dangerous liquids.
• Naval duty : Loading and unloading; bilge pumping; washing, fire fighting, stripping, sanitary duty and circulation.
• Waste treatment: pumping polluted, hot or corrosive waster water containing sand, mud or solids in suspension; dosing neutralizing liquids; pumping out settled sludge.
• Construction industry : Dewatering excavation, canals or ponds; ground water dewatering with well point system or drains; water supply from wells or canals; hosing down concrete castings.
• Agriculture : Surface irrigation; liquid manure oxygenation; transfer and spraying liquid manure or fertilizers, distribution of liquid animal feed; transfer of must; washing.

TYPICAL APPLICATION:-

• Liquid containing sand mud or solids in suspension with pH from 5-13 , smoke scrubbing; water emulsion for machine tools or grinders, cutting or quenching fluid circulation, cooling water circulation in steel mills or drawing mills; neutralizing liquid dosage, pumping out settled sludge, sump pumping liquid manure transfer and circulation
• Water circulation in paint spray booths; stripping fuel tanks circulation
• Recovery of dirty solvents
• Transfer of light petroleum product such as diesel fuel, paraffin, kerosene and petrol (gasoline)
• Liquid fertilizer transfer, circulation and spraying, brackish or sea water containing sand
• Brackish or sea water washing, cooling or fire fighting in ports; auxiliary duties on board
• Marine duty; brine, sea intake and circulation of sea water in swimming pools
• Pumping out acid waster, transfer, of dilute acids; fruit juice or fluid food products
• Recovery of spills from chemical plant; transfer or circulation of caustic soda or potash
• At Drilling Rigs
