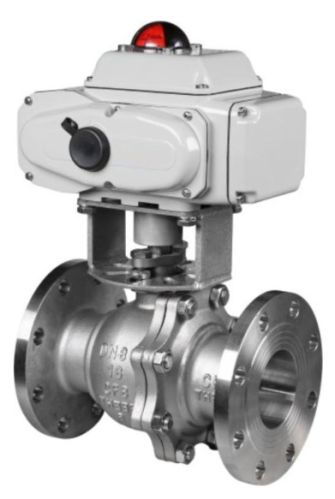

ELECTRIC ON-OFF BALL VALVE

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Electric on-off ball valve consist of angular travel electric actuator and ball valve. Simple structure, rapid switching, large flow capacity, zero leakage, applicable to the fluid with high viscosity, fiber-containing, solid particle. It has been widely used in petrochemical, metallurgy, light industry and other industrial automation field to cut-off or open the gas / liquid

Company Information

Member Since 20 Years
Nature of Business Retailer
Year of Establishment 2000

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Type	ON/OFF Ball valve
Size (DN)	DN15 ~ DN300 mm
Pressure rating	PN1.6 – PN6.4 Mpa
Flange standard	JB/T79.1-94、79.2-94
Body / ball material	WCB，CF8，CF8M / CF8，CF8M
Bonnet type	Whole type
Packing	V-type PTFE / flexible graphite
Seat seal material	Soft seal: PTFE, Carbon fiber reinforced PTFE , Composite graphite Metal seal: CF8、CF8M + Stellite
Operation temperature	Seal: PTFE	-10~180℃
	Seal: Carbon fiber reinforced PTFE	-40~200℃
	Seal: Composite graphite	-40~500℃
	Seal: CF8、CF8M + Stellite	-40~600℃
Leakage	Seal: PTFE	zero leakage
	Seal: Carbon fiber reinforced PTFE
	Seal: composite graphite	< 10^6 of rated flow
	Seal: CF8、CF8M + Stellite	< 10^5 of rated flow
Flow characteristics	quick-opening
Rated travel	Full-open 90°
Remark: for metal seal, advise to select Eccentric semi-ball valve

Actuator

Type	Electric actuator, intelligent integrated
Usage	ON/OFF
Power supply	220VAC, 380VAC
Input signal	4-20mA.DC or 1 -5 VDC
Action type	Electric open / Electric close
Environmental temperature	-25℃～+70℃
