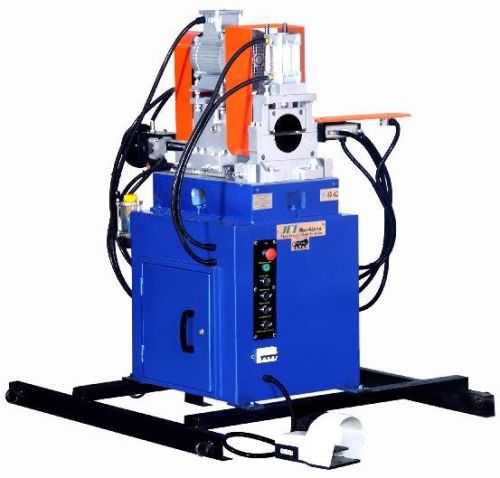

We have carved a niche as one of the leading pipe chamfering machine manufacturers & exporters in maharashtra, india. Our pipe chamfering machine has auto-clamping & auto-feeding features controlled through hydro-pneumatic cylinders & auto dampening flow control valve with indicator. We supply highly efficient pipe chamfering machine using standard carbide inserts with great accuracy thus, maintaining center to center. Our pipe chamfering machine is equipped with 3 independent inserts which ensures application of od –id –facing at a time or in any combination. We offer pipe chamfering machine as per user specification with desired variable depth of cut. used for

• pipe beveling
• pipe cutting
• available in
  • pipe evelling machine
  • pipe bender
  • specificationsmodelef-52acef-80acef-110acspindle motor1 hp x 4 p2 hp x 4 p3 hp1.5 hp x 24pspindle speed (rpm)900 600 2000 35601200 1600800 1600air pressure6-8kgcm2, 120mlmin 0.6~0.8mpacutter head (mm)ø12~ø60 (standard)


    ø3.2~ø16 (optional)ø12~ø60 (standard)


    ø10~ø16 (optional)


    ø25~ø80 (optional)ø25~ø110 (standard)


    ø12~ø60 (optional)pipe and bar o.d. Outer i.d. Inner angle and end facepipe i.d. Ø8mm~40mm


    bar outer angle o.d. Ø~ø35


    pipe o.d. Ø12 mm~42 mmpipe i.d. Ø12mm~75mm


    bar outer angle o.d.


    ø10~ø50


    pipe o.d. Ø14mm~78mmpipe i.d. Ø20 mm~106mm


    pipe o.d. Ø24mm~110mm


    bar outer angle ø19~ø60length of pipe min. 50~infiniteapplicable materialvarious pipes including steel, iron, stainless steel, aluminum, bronze, non-ferrous metal, plastic and graphite fiber.machine dimension (l x w x h)650 x 750 x 1000750 x 900 x 1050800 x 950 x 1100n.w.160 kg270 kg310 kg
