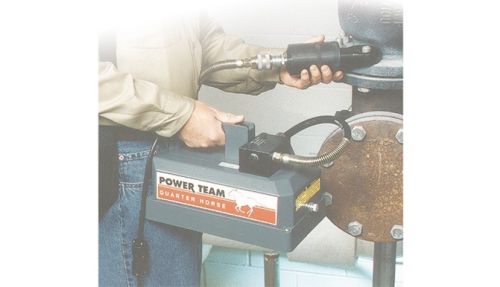

Electric Portable 2-Speed Pump

CategoryHydraulic Products
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Quarter Horse® Series, Electric and Battery powered models for powering tools and cylinders up to 25 Ton. Description HIGH PERFORMANCE IN COMPACT PACKAGE. ELECTRIC AND BATTERY POWERED MODELS FOR....

View More Details

Send Enquiry

Company Information

Integrated Systems Tools

MG Road, Secunderabad, Telangana

View Number

Member Since 10 Years
Nature of Business Retailer
GST No. 36AGRPJ2053M1Z0

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Quarter Horse® Series, Electric and Battery powered models for powering tools and cylinders up to 25 Ton.

Description

HIGH PERFORMANCE IN COMPACT PACKAGE. ELECTRIC AND BATTERY POWERED MODELS FOR POWERING TOOLS AND CYLINDERS UP TO 25 TON.

Portable power source for hydraulic cylinders, and tools.
Permanent magnet motor starts easily under load, even with reduced voltage conditions.
Battery-operated models have 8 foot (2,4 m) power cord with alligator clips to connect to any 12 volt battery.
Optional rechargeable battery pack with shoulder strap for maximum portability.
Pump typically delivers 15 minutes of continuous operation at 10,000 psi (700 bar) on a single battery.
Pump can be operated in any position.
24 volt hand and foot switches available for all AC powered models.
High-impact housing with flame– retardant construction.
Base mounting holes for fixed installations.

* “Advance” position holds pressure with motor shut off. “Return” position advances cylinder with motor running and returns cylinder with motor shut off.
** Cylinder advances with motor running and automatically returns with motor shut off.
† Comes with an 2,4 m alligator clip cord for 12 volt DC use.

ORDER NUMBER	FOR USE WITH CYLINDER TYPE	DESCRIPTION	VALVE TYPE	VALVE NUMBER	VALVE FUNCTION	CONTROL SWITCH	MOTOR	RESERVOIR USABLE CAPACITY (LITER)
PE102-E220	Single-Acting	Base model pump with 0,19 kW motor. Bladder type reservoir, 110 volt power required.	2-Way/ Auto. Dump	9561	Advance Return (Auto.)*	Rocker Type off, Momentary on	0,19 kW, 110/115V 50/60 Hz, Single Phase	1
PE102A-E220	Single-Acting	PE102-E220, except has automatic dump valve.	Auto. Dump	9562	Advance Return**	Rocker Type off, Momentary on	0,19 kW, 110/115V 50/60 Hz, Single Phase	1
PE102-220	Single-Acting	PE102, except requires 220 volt.	2-Way/ Auto. Dump	9561	Advance Return (Auto.)*	Rocker Type off, Momentary on	0,19 kW, 110/115V 50/60 Hz, Single Phase	1
PE102A-220	Single-Acting	PE102A, except requires 220 volt.	Auto. Dump	9562	Advance Return**	Rocker Type off, Momentary on	0,19 kW, 220/230V 50/60 Hz, Single Phase	1
PR102	Single-Acting	PE102, except requires 12 volt DC.	2-Way/ Auto. Dump	9561	Advance Return (Auto.)*	Rocker Type off, Momentary on	0,19 kW, 12V†	1
PR102A	Single-Acting	PE102A, except requires 12 volt DC.	Auto. Dump	9562	Advance Return**	Rocker Type off, Momentary on	0,19 kW, 12V†	1
PE104	Single-Acting/ Double-Acting	Base model pump has 4-way valve for operating double-acting systems. 110 volt power required.	4-Way	9563	Advance Hold Return	Rocker Type off, Momentary on	0,19 kW, 110/115V 50/60 Hz, Single Phase	1
PE104-220	Single-Acting/ Double-Acting	PE104, except requires 220 volt.	4-Way	9563	Advance Hold Return	Rocker Type off, Momentary on	0,19 kW, 220/230V 50/60 Hz, Single Phase	1
PR104	Single-Acting/ Double-Acting	PE104, except requires 12 volt DC.	4-Way	9563	Advance Hold Return	Rocker Type off, Momentary On	0,19 kW, 12V†	1
