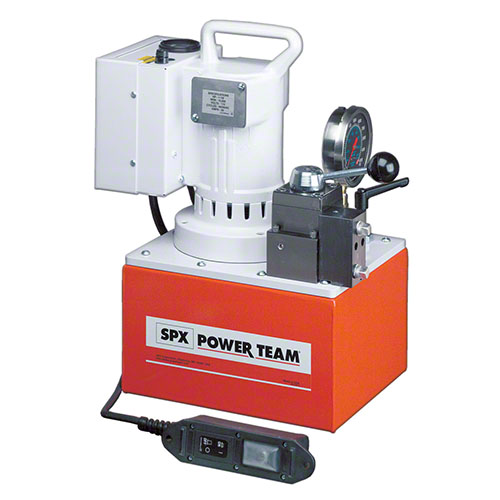

Electric Portable

HEAVY DUTY MULTIPLE-APPLICATIONS PUMP. HEAVY CONSTRUCTION AND CONCRETE STRESSING. LOW VOLTAGE STARTING POSSIBLE.

• 1 1/8 hp (0,48 kW), 12,000 rpm, 110/115 (220) volt, 50/60 Hz universal motor; draws 25 amps at full load, starts at reduced voltage. CSA rated for intermittent duty.
• 10 foot (3,1 m) remote motor control (except PE552S which has a 25 foot (7,6 m) remote motor and valve control).
• True unloading valve achieves greater pump efficiency, allowing higher flows at maximum pressure.
• Reservoirs available in sizes up to 10 gallons (38 liter).
• Light weight and portable. Best weight-to-performance ratio of all Power Team pumps.
• “Assemble to Order” System: There are times when a custom pump is required. Power Team’s “Assemble to Order” system allows you to choose from a wide range of pre-engineered, off-the shelf components to build a customized pump to fit specific requirements. By selecting standard components you get a “customized” pump without “customized” prices. All pumps come fully assembled, add oil and ready for work.

* Pumps available with 115 volt, 50 Hz motors (to order remove the -50-220 suffix from the order code). See “Assemble to Order” pump options.
** Holds with motor shut off.
***To order PE55 series pumps with CSA approval, add “–C” to the Order Number.
† Valves have Posi-Check® feature.
†††Valving allows alternate and independent operation of two different spring return tools. Valve holds pressure only while valve is in “A” or “B” port position with pump motor shut off.∞ Not to be used for lifting applications.
