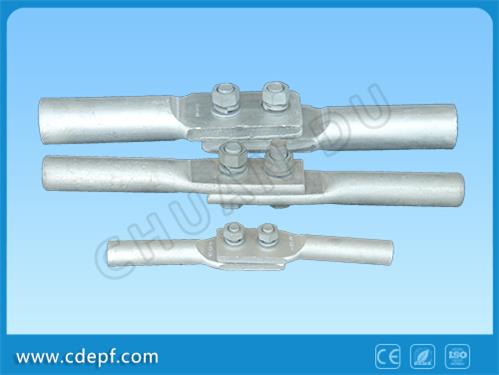

Electric Power Fitting Jumper Connector

Electric power fitting jumper connector the jumper connector is mainly used to tighten the wire terminal, so that it is fixed in the line insulator string, but also for lightning terminal fixing and guy wire anchor. The splicing fitting is primarily used to join kinds of bare conductors and lightning conductors.it bears the same electirc load as conductors.most splicing fitting bear all the tension of conductors,ground wires and lightning conductors. According to the tensile condition,splicing fittings include force-bearing type and non-force-bearing type. Splicing fittings are generally divided into compression type and preformed type.and the compression type includes hydraulic compression,explosive compression and compression with pliers. Catalog no. Suitable conductor dimensions (mm) weight (kg) d l1 l2 d jyt-356 lgj-356 16 60 30 9.5 0.3 jyt-508 lgj-508 18 60 30 11.0 0.3 jyt-7010 lgj-7010 22 70 30 13.0 0.4 jty-9515 lgj-9515 26 80 30 15.0 0.5 jyt-9555 lgj-9555 26 81 40 17.5 0.5 jyt-1207 lgj-1207 28 80 40 16.0 0.6 jyt-12020 lgj-12020 26 80 40 16.5 0.6 jyt-1508 lgj-1508 30 90 40 17.5 0.7 jyt-15020 lgj-15020 30 90 40 18.0 0.7 jyt-15025 lgj-15025 30 90 40 18.5 0.7 jyt-18510 lgj-18510 32 90 40 19.5 0.7 jyt-18525 lgj-18525 32 90 40 20.5 0.7 jyt-18530 lgj-18530 34 100 40 20.5 0.7 jyt-21010 lgj-21010 34 100 40 20.5 0.8 jyt-21025 lgj-21025 34 100 40 21.5 0.8 jyt-21035 lgj-21035 34 100 40 22.0 0.8
