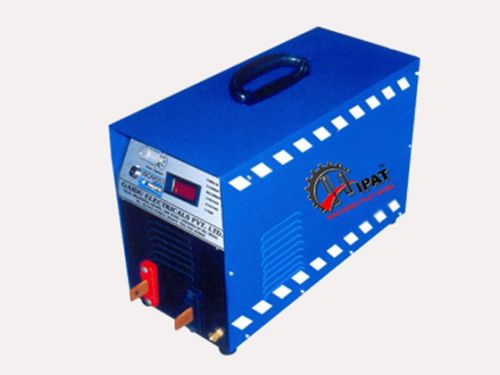

It is multi-system welding unit having the three most common welding methods in the same package. It is based on the most up-to-date technology in the welding field. Many divfferent auxillary functions simplyfy the work of the welder and increase the productivity of his work. It is most suitable where a job demands a continuous change of welding method.
Â
The following different facilities are provided in one package :
| POWER SOURCE | MODEL | INV-500 |
|---|---|---|
| Static Characteristics | Type | Constant Potential |
| Input Supply Voltage Phase Frequency | V Nos. Hz | 380-415 3 50-60 |
| Welding Current Range | A/V | 10/10 – 500/40 |
| Rating 100% Duty Cycle | KVA | 22 |
| Open Circuit Voltage | V | 80 |
| Maximum Input Current | Amps | 28 |
| Load Ability @ 100% @ 60% | Amps Amps | 390 500 |
| Cooling Type | Forced Air Cooling | |
| Insulation | Class | F |
| WIRE FEEDER | MODEL | FEEDINV-500 |
|---|---|---|
| Wire Diameter | ||
| Wire Drive Motor | Type | Permanent Magnet DC MOTOR |
| Drive System | Type | 2 – Roll Quick Realease |
| Wire Feed Speed | m/min | 0 to 20 |
| TORCH | MODEL | KD-36 |
|---|---|---|
| Rated current at 100% Duty Cycle Co 2 | Amps | 400 |
| Cable Hose Length | Mtr. | 3 |
| Cooling | Type | Gas/Water |
| POWER SOURCE | L | W | H |
|---|---|---|---|
| INVERTOR | 760 mm | 465 mm | 610 mm |
| WIRE FEEDER UNIT | 535 mm | 235 mm | 330 mm |
| OPTIONAL ACCESSORIES | STANDARD ACCESSORIES | APPLICATIONS |
|---|---|---|
| Co2 Regulator cum Flow Meter Helmet with glass Pair of hand Gloves Wire Brush Apron & Spray | A coolant pump fitted on a tank, Diamond Dresser 2 nos., Oil can, Dead Center 2 nos., Tool kit. Additional attachment extra cost : Internal Grinding Attachment, Balancing Stand, Balancing Mandrel, Three Points Steady Rest, Two points Steady Rest, Radius Truing Device, Spare wheel Flange, Independent Four Jaws Chuck, Magnetic Coolant Pump, Grinding Gauge. |
