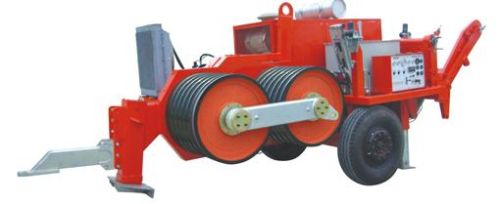

Electric Power Line Hydraulic Puller

Electric Power line Hydraulic Puller Hydraulic Self-propelled Conductor Puller Description:A. They are widely used for stringing the conductors & cables(OPGW,ADSS,500kv traction rope, ACSR series, etc.) in the overhead line stringing construction.B. This machine has a set of tension early warning system, which can automatically adjust the speed according to the undue load or friction produced on the line and can keep the tension at setting value.C. Tension or pulling force can be preset, spring applied brake, reliable overhead protection mechanism, easy to operate. Main configurations: Engine : CUMMINS made by joint venture in China Main hydraulic motor : REXROTH in German Main hydraulic pump : REXROTH in German Speed Reducer: REXROTH in German  Hydraulic valve(Italy ATOS); pipeline system and meter ( made in Italy or German WIKA) Product No. Model Max pulling force (KN) Max Continuous pulling force (KN) Corresponding speed (kmh) Max continuous  pulling  speed  (kmh) Puller wheel diameter Dia Φ(mm)) Groove number Max  steel wire rope DiaΦ(mm) Max steel ree Dia Φ(mm) Engine Power (KWRPM) Electrical System Dimensions (mm) Weight (kg) 10552 QYT280KN 280 250 2.5 5 960 11 38 1600 2982100(Cummins) 24 5800×2500×2850 12800 10553 QYT180KN 180 150 2.5 5 700 10 27 1400 2202200(Cummins) 24 4300×2360×2380 6800 10554 QYT90KN 90 80 2.5 5 540 8 21 1600 1182500(Cummins) 24 4000*2200*2100 4000 10555 QYT60KN 60 50 2.5 5 450 7 1
