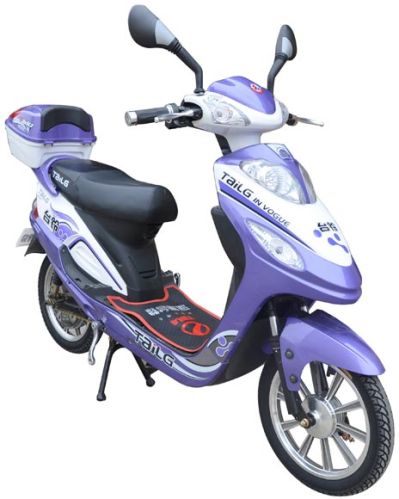

Contact SupplierWe are offeirng electric scooter etc.
Body model tdr398z
dimension 1700×610×1080mm
net weight 65 kg
standard load capacity ≤125 kg
standard max speed 38 km/h
standard range per charge 40-60 km
wheel specification 16` integrated aluminum rim
(f/r tyre) wheel base 1,180 mm
chain wheel base n/a
tyre specification 16*2.4
battery type free-maintenance sealed lead-acid battery
specification 48v/12ah
motor type dc brushless
rated output power 350 watts
rated output torque 6.5 n.m
climb capacity ≤9°
controller over-current protection 17a
under-voltage protection 42v
charger specification 48v/2a
charging voltage ac220v-50hz or specified by the customer
charging time 3—8 hrs
power consumption per charge ≤0.68 kw.h
brake type f/r drum brake, e-abs brake system
