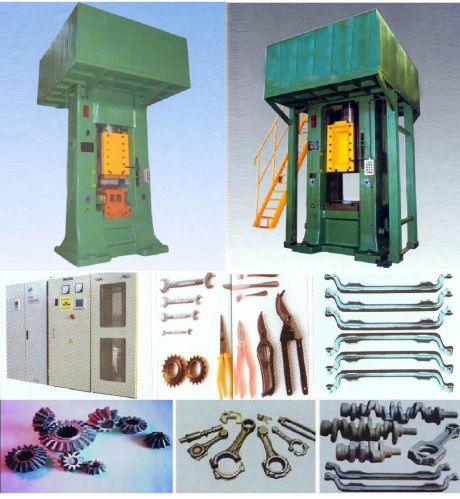

Electric Screw Press

EP / EPC series electric screw press is an energy-saving precision forging equipment. EP series is a direct-drive electric motor screw press; EPC series are electrical - mechanical drive electric screw press, the machine uses servo type Switched Reluctance Motor with high starting torque, speed and good performance .
EP Series The main technical parameters
Model Nominal forcekN Allow forcekN KJ of energy moving parts Slide strokemm Trips Minimum closed heightmm Table plate thicknessmm Working Surface
Forging / Forging min-1 (Before and after X so)（F.B×L.R)mm
EP-160 1600 2500 10 300 30 500 120 560×600
EP-250 2500 4000 15 320 28 500 120 560×600
EP-315 3150 5000 20 380 26 550 120 640×700
EP-400 4000 6300 36/18 400 24 570 120 750×700
EP-500 5000 8000 50/25 425 22 650 120 750×700
EP-630 6300 10000 72/36 450 20 780 140 800×750
EP-800 8000 12500 100/50 475 19 860 160 900×800
EP-1000 10000 16000 140/70 500 18 950 180 1000×900
EP-1250 12500 20000 200/100 525 17 1050 180 1100×1000
EP-1600 16000 25000 280/140 550 16 1100 200 1200×1100
EP-2000 20000 32000 360/180 600 15 1200 250 1350×1200
EP-2500 25000 40000 500/250 650 14 1300 280 1400×1250
EP-3150 31500 50000 700/350 700 13 1400 280 1500×1350
EPC Series The main technical parameters
Model Nominal forcekN Allow forcekN KJ of energy moving parts Slide strokemm Trips Minimum closed heightmm Table plate thicknessmm Working Surface
Forging / Forging min-1 (Before and after X so)（F.B×L.R)mm
EPC-400 4000 6300 36/18 400 24 570 120 750×700
EPC-500 5000 8000 50/25 425 22 650 120 750×700
EPC-630 6300 10000 72/36 450 20 780 140 800×750
EPC-800 8000 12500 100/50 475 19 860 160 900×800
EPC-1000 10000 16000 140/70 500 18 950 180 1000×900
EPC-1250 12500 20000 200/100 525 17 1050 180 1100×1000
EPC-1600 16000 25000 280/140 550 16 1100 200 1200×1100
EPC-2000 20000 32000 360/180 600 15 1200 150 1350×1200
EPC-2500 25000 40000 500/250 650 14 1300 280 1400×1250
EPC-3150 31500 50000 700/350 700 13 1400 280 1500×1350
EPC-4000 40000 63000 1000/500 750 11 1500 300 1900×1600
EPC-5000 50000 80000 1120/560 800 9 1600 300 2000×1700
EPC-6300 63000 100000 1600/800 850 8 1700 320 2150×1800
EPC-8000 80000 125000 2280/1140 900 8 1800 320 2350×2000
