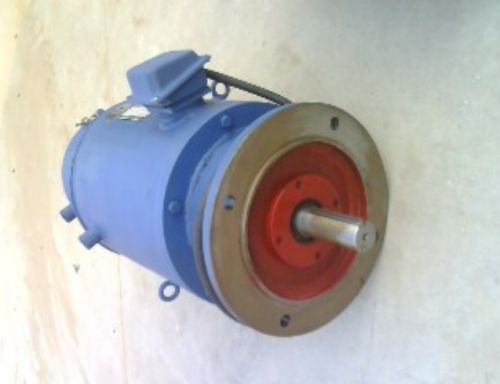

Electric Single Girder Cranes High Temperature Motors

Specifications:-
high temperature motor
2.high humidity ac motor
3.motor is used with axial fan
4.dedicated to wood drying kiln
5.fan motor
high temperature motor
2.high humidity ac motor
3.motor is used with axial fan
4.dedicated to wood drying kiln
5.fan motor
MSW series High temperature & humidity motor is used with axial fan that dedicated to wood drying kiln fan, the motor performance designed according to pump& fan load characteristic, can save energy. With F/H strengthen insulation, It can be continuous reversible cycle work on the water vapour environment of high temperature and humidity wood precipitate for a long-term, to ensure reliable Insulation and long service life. Motor with tapered or straight shaft In order to facilitate loading and unloading fan Impeller, adopt Foreign oil injection structure. Not only to extend the service life of the bearing, but also avoid the tiredness of oiling disassembly. The production class is IP55, that can improve self-ability of steam & wood dust prevention,etc.
Operation Limination
Max ambient temperature up to 140
Relative humidity up to 98%
Altitude not exceed 1000M
Construction Features
Motor Housing: cast iron
Insulation Class: F/H
Protection Class: IP55
Duty: S1(continuous)
Cooling method:IC411
