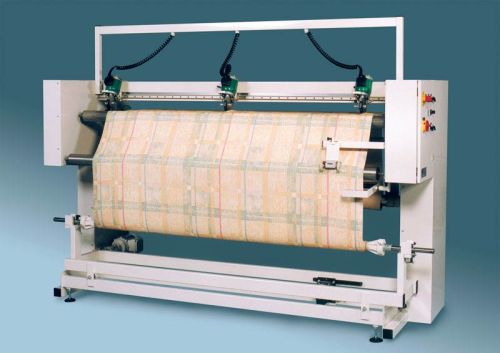

Electric Slitting Machine

We are offering Electric Slitting Machine in the market. Electric Slitting Machine cut strips from rolls of (technical) fabrics or foils. These Electric Slitting Machines are used for cutting off the selvage, to cut rolls of fabric into strips or panels, or to slit fabrics for vertical blinds. Our Electric Slitting Machines are capable of cutting fabric with width up to 400 cm, and offers maximum roll size of diameter 50 cm and weight 250 kgs.
Salient Features

• Fabric width up to 400 cm
• Maximum roll size : diameter 50 cm, weight 250 kg (rolls up to 600 kg on request)
• Up to 30 adjustable slitting knives
• Available cutting system : cold or hot crush cutters, rotating knives, stagnant knives or ultrasonic cutters
• One or two driven winding up shafts, optionally pneumatic controlled and with safety chuck
• Edge control system
• Back lighting (optional)
• Programmable length measurement system (optional)
• Cross cutting knife (optional)
• Machine dimensions (l x w x h) : fabric_width+100 x 120 x 200 cm
• Power supply 208-230v, 50-60 hz, 2 kw, 6 bar air supply
