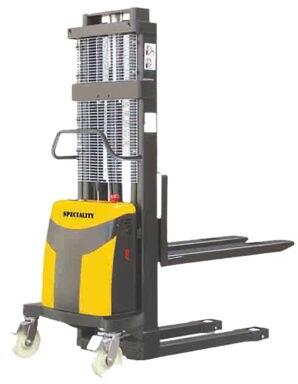

Electric Stacker

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location India only

Handle-castor chain assist steering system greatly reduces the labor intensity. Equipped with explosion-proof valve, ensure no sharp drop of platform and prevent operator from harm. Over-discharge protection device greatly prolongs the battery use time. Overall type adjustable forks, which can be lowered to the same level of the legs. Chain connect side wheel and handle, easy for steering. Easy operating foot brake.

View More Details

Send Enquiry

Company Information

Speciality Equipment & Spares

Jayanagar, Bangalore, Karnataka

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Model		CDD1025BA	CDD1030BA
Capacity	Q(kg)	1000	1000
Load centre distance	c(mm)	500
Height, mast lowred	h1(mm)	1838	2088
Fork height, lowered	h13(mm)	90
Max.lift height	h3(mm)	2500	3000
Height,mast extended	h4(mm)	3088	3588
Fork dimensions	s/e/l(mm)	60/170/1100
Width overall forks	b5(mm)	550	550
Overall length	l1(mm)	1728
Aisle width for pallets 800×1200 lengthways	Ast(mm)	2140
Turning radius	Wa(mm)	1328
Lift speed,laden/unladen	mm/s	80/100
Lowering speed,laden/unladen	mm/s	manual control
Battery voltage,nominal capacity K5	V/Ah	12/120	12/120
Service weight(with battery)	kg	370	382
