Electric Thermal Actuator

₹ 760.75 / Set

MOQ500 Piece(s)
PowerHydraulic
MediaWater
Place of OriginZhejiang, China (Mainland)
Temperature of MediaMedium Temperature
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Product Details

Temperature6-28/20-60/30-70 degree
Standard or NonstandardStandard
TypeHVAC Systems
StructureControl
Place of OriginZhejiang, China (Mainland)
Port SizeM30*1.5
Temperature of MediaMedium Temperature
CertificationCE,ISO9001:2008,ISO14001:2004
MediaWater
PowerHydraulic
Brand NameBaiyilun
MaterialPlastic+Brass

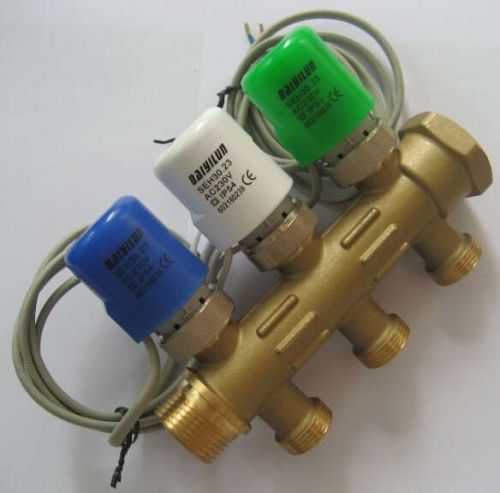

We are offering electric thermal actuator with radiator straight valve dn20
product description
specifications:
electric thermal heating valve
1.nonc
2.12vdc24vdc110vac230vac
3.power:2w
4.stroke:3mm-5mm
detailed description:
certificate: en215 ,ce ,iso9001:2008, iso14001:2004
material: brass
size:dn15dn20dn25
anglestraight valve
voltage: dc12v,dc24v,ac110v,ac230v(220v)
power consumption: 2w
function:n0nc
stroke: 3mm-5mm
thrust:110n
ip54
starting time: 3-5min
join size: m30*1.5mm
environment temperature :from -5c°to 60°c
wire length: 1000mm
2.thermostatic valve body
made of brass, easy to be installed
low resistance
water temperature : less than 120 degree
normal resistance to pressure: 10 bar.
