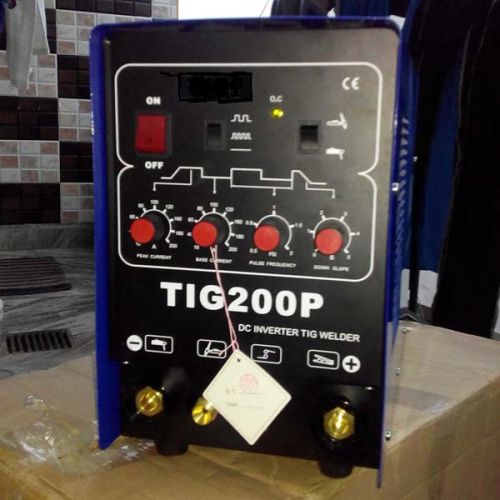

TIG Welding Machine (TIG 200P ), Certification : CE Certified

Get Latest Price

Automatic GradeAutomatic, Semi Automatic
Driven TypeElectric
CertificationCE Certified
Power1-5kw, 10-15kw, 15-20kw
Supply TypeManufacturer, Supplier, Retailer
Preferred Buyer Location All over the world

Company Information

5.0/5

(1)

View Number

Member Since 10 Years
Nature of Business Retailer
Year of Establishment 2014

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Power1-5kw, 10-15kw, 15-20kw
Driven TypeElectric
Total Carbohydrate1year
Number Of FlowerWelding Machine
CertificationCE Certified
Country of Origin220V, 230V
Automatic GradeAutomatic, Semi Automatic

We are the name to reckon with bulk orders of TIG Welding Machine (TIG 200P) in Delhi, India. For years, we have maintained our name among the topmost manufacturers and suppliers of TIG Welding Machine (TIG 200P). Our customers have never been disappointed be it the quality of the machine, its pricing or prompt delivery. The machine consumes very less power and has a robust design. Moreover, our machines can be customized to meet the diverse requirements of our customers.

Features:

Consumes less power
Consistent performance
Robust design

AC DC TIG Welder Inverter Based

An advance MOSFET control technology
Compact, portable, highly effective, low consumption energy saving.
Two modes for tig welding AC-DC output step
AC mode use to weld aluminium and ac mode use to SS/MS sheet
Hermostatic control, force air cooled and carrying strap with handle.
Impulse inside with overload protection.

Technical Specifications

Model	TIG/ARC AC-DC TIG 200P
Input voltage	220 V +15%
Frequency	50/60 Hz
Rated Input power	4.5 KVA
Rated input current	16
Range of output current	10 to 200
Open circuit voltage	62V
Rated output voltage	21.4
Pre-flow time	0-2S
Clean width	1-80(%)
Slope-down time	0-5s
Pulse width	10-100(%)
Range of pulse frequency	1-70 (Hz)
Post-gas time	2-10s
Arc-leading	HF vibration start
Efficiency	85 (%)
Duty cycle	60 (%)
Power factor (COS )	0.93
Insulation class	H
Protection class	IP21, IP23
Weight (approx)	18 kg
Measurement (approx)	560x361x360mm
