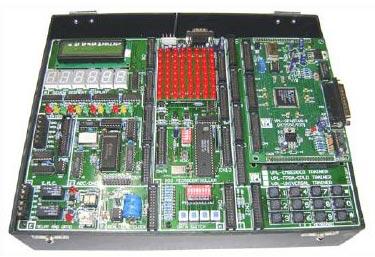

Electric 50Hz Virtex Trainer Kit, Certification : CE Certified

Our company is reckoned amidst the leading Exporters and Suppliers of Virtex Trainer Kit. Virtex Trainer Kit uses industry standard Virtex 600. It communicates with computer through standard Webpack. It has a serial & parallel link which enable user to communicate with PC.
Features

• It uses industry standard Virtex 600
• It communicates with computer through standard Webpack
• It has a serial & parallel link which enable user to communicate with PC.
• User can develop the circuit/schematic using Xilinx standard Foundation Series Software and any development tool for VLSI design available in the world.
• It has various on-board interfaces :

• 16x2 LCD module
• Six Seven Segment Displays
• Stepper Motor Controller Interface
• 8x8 LED Matrix Display
• EWSN Status LED's 12 Nos.
• ADC/DAC Interface
• RS-232 interface
• Parallel JTAG interface
• Four Data Switches
• Switch Array
• AT24C16 Serial EEPROM
• 4x4 Keyboard
• Power Indicator LED
• On board microcontroller with 64K flash, 1K RAM ISP with required software.
• It has I/O counter interface to enable it to connect various demo modules. This helps in man to machine interface.
• Has a general purpose areas on board to enable it to incorporate additional circuit

Package Contents

• VPL-CPLD Card
• Set of cables flat and serial
• Application CD ROM
• User's manual : detailed information on components and usage
• Data sheet of major components
• List of experiments for CPLD as listed
• On board facility for variable clock generation
