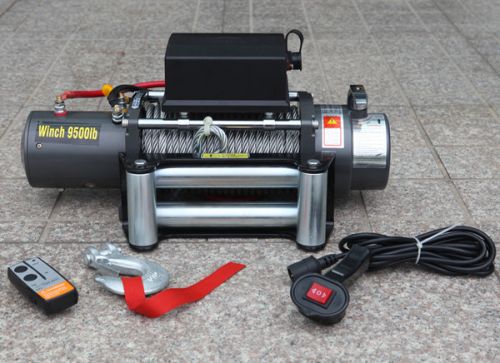

Electric Winches

We are offering Electric Winches for Jeeps.
Winch features
1. Series wound high hp motor, delivers plenty of power.
2. Gears are made of 20Cr steel, crafted with cold extrusion and heat treatment, to meet your toughest pulling demand.
3. Key way cam clutch 191:1, rotating to get winch fully engaged and disengaged; or sliding ring gear
4. 500A solenoid, compact design and sealed. Durable winching.
5. Sealed winch and solenoid
6. Fine precision processed transmission shaft, to reduce vibration and noises.
7. We have 100% testing on winch pulling capacity and function.
8. Safe packages-foam and honeycomb carton / pallet
Waterproof high quality winch with cold extrusion 20Cr steel gears to meet toughest pulling demands, one 500A solenoid, 100% function and pulling test
Key way cam clutch Features
1. Gears are 20Cr steel crafted with cold extrusion and heat treatment, to meet toughest pulling demand.
2. Gear ratio 191:1, high line speed.
3. Rotating to get your winch fully engaged and disengaged both in two directions.
SC9.0X 12V or 24V
9000LB Heavy Duty Electric Winch
Specification:
Rated line pull: 9000lb (4082kg) single line
Motor: 5.5hp/4.0kw,series wound 12V
Control: Remote switch, 12ft (3.7m) lead
Gear train: 3 stage planetary
Gear reduction ratio: 191: 1
Clutch: key way cam clutch
Braking: Automatic load-holding brake
Drum size: Ø2.5″*L8.8″ (Ø63.5mm*L224mm)
Cable: Ø8.1mm*28m
Fairlead: 4-way roller fairlead
Wireless Remote control: included
Battery recommended: 650 CCA minimum for winching
Battery leads: 2 gauge, 72" (1.83m)
Finishing: Black, dark grey coating
Overall dimension (L*W*H): 525*160*214mm
Mounting bolt pattern: 10″*4.5″ (254*114.3mm)
N. W. /G. W.: 35/37KG
Packing: thick foam packing, 1PC/CTN
