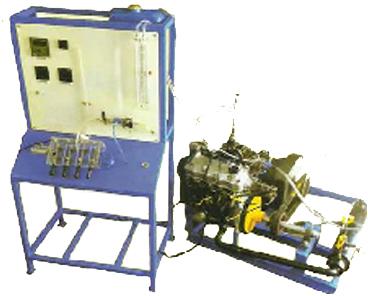

ELECTRICAL DYNAMOMETER MULTI CYLINDER PETROL ENGINE TEST RIG

The unit consist of

• Engine :- Petrol engine test rig consisting of a multicylinder 4- stroke 4 cylinder petrol engine, developing about 10 H.P. at 1500 R.P.M. engine.
• Loading device :- Electrical Dynamometer: A suitable capacity Generator With water rheostat, load bank & load measurement arrangement.
• The unit is accompanied with the following accessories :- ignition switch, a radiator, a self starter, a battery ammeter, a throttle control. Special arrangements by switches for cutting off ignition of each cylinder for morse test, all mounted on a suitable panel board, a battery for starting the engine, clutch arrangement.
• Fuel arrangement :- Fuel tank mounted on a sturdy iron stand, burette tube, 3 -way cock connecting tube, a stop watch.
• Cooling water arrangement :- Cooling water arrangement by cooling piping. A Measuring Jar to determine the discharge of cooling water. Special arrangement to use either radiator or external cooling water supply system.
• Exhaust gas temperature - Digital temp. indicator
• Air intake measurement: - Air intake reservoir with orifice plate & Differential manometer.

SERVICE REQUIRED:
1) 230 V. A.C. supply earthing connection.
2) Rigid foundation to absorb the vibration.
3) Water supply and piping to & from engine, calorimeter & dynamometer to be provided by Institute.
4) Petrol / Diesel for Testing.
