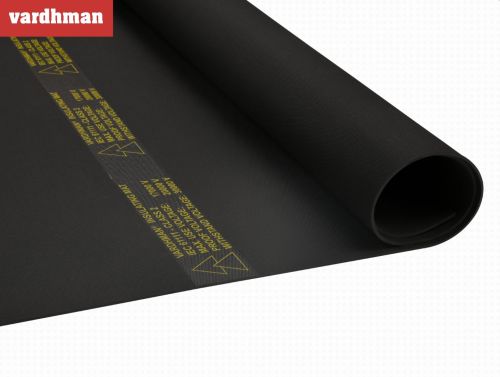

Electrical Insulating Rubber Matting Iec/BS EN 61111:2009

Get Latest Price

Width0.9mtr, 1.0mtr, 1.2mtr
Length2mtr, 5mtr, 10mtr, 20mtr, or as per requirement
ThicknessAs Per Specified Class
Thermal Test (Low Temp. Test)No Crack @ 100N. No Breakdown on specified voltage.
Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Vardhman Hoses Private Limited

RIICO Industrial Area, Bhiwadi, Rajasthan

4.5/5

(22)

View Number

Member Since 14 Years
Nature of Business Manufacturer
GST No. 08AAACV6416E1ZH

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Width0.9mtr, 1.0mtr, 1.2mtr
Length2mtr, 5mtr, 10mtr, 20mtr, or as per requirement
ThicknessAs Per Specified Class
Color(*Other colors as per request)BLACK/BLUE/GREY
Surface/DesignAnti-Skid Texture Finish
Composition and SurfaceRubber elastomer*, Anti Skid Finish. Macromolecular material which returns rapidly to its final dim
WorkmanshipMats shall be free from Harmful physical irregularities.
Mechanical Puncture ResistanceMin. 70N
Slip Resistance Test @ force of 70NMaximum 15mm
Ageing Test at 70°C / 168 hrs.Puncture Resistance shall be min. 80% of original value.
Flame Retardant TestFlame shall not reach any point on a 50mm circle.
Thermal Test (Low Temp. Test)No Crack @ 100N. No Breakdown on specified voltage.
Acid Test; H2SO4 for 8 hrs. Minimum Retention in Mech. Puncture Test initial value.Min. 75% Retention & No Breakdown on specified Voltage.
Oil Test; oil for 2 hrs. Minimum Retention in Mech. Puncture Test initial value.Min. 75% Retention & No Breakdown on specified Voltage.

Vardhman Insulating Matting (Di-Electric Carpets) made of Rubber Compound suitable for providing the Electrical safety to the workmen working around the possible areas of Electrical shock and act as a safeguard equipment from electrical shock due to leakage of current, shot circuit or any other.

Electrical Rubber Matting manufactured by Vardhman conforms to IEC 61111 and comes with a double triangle logo. The special high quality Rubber Compound ensures the complete shock protection against electrical shocks due to electrical earth faults.

Our Mats are fully compliant With IEC 61111 (International Electro Technical Commission) and are regularly tested by third like TUV, Lloyds and many others. The mats offered by us are ROHS and PAH Compliant.

We at Vardhman, adopt the most advance technology to manufacture Insulating Mats. The state of the art line (German Technology) makes our quality and finish unmatchable in the industry.

All the testing and inspection facilities are established within the factory Which ensures every square inches of mat are fully tested to the specifications.

Application

The Mat can be used in Indoor and outdoor locations and are mostly used in front and rear side side of electrical panels, switchgears, transformers and other high voltage workplaces to provide the high safety environment for the workforce.

This mat can also be used as portable protection for site engineers working on live equipment.

Features and Advantages:

Fully tested to specification IEC 61111.

Provides safety for operators against electrical shock.

High Electrical Resistance Up to 50 KV/50000 volts.

Suitable for both AC and DC Applications.

Health and safety regulation Halogen Free flame retardant material.

Highly Flexible mats with self-gripping design on floor.

Anti-Fatigue type. Comfortable while standing for long period.

Anti-Slip Finish. Tested to slip resist test.

Resistant to acid, oil and Low temperature test.

Ozone, UV and weather resistant.

Permanent Marking-Durable and un-erasable done while curing of mats.

Fully Traceable supply.

Low Maintainance.

No Recycled Rubber.
