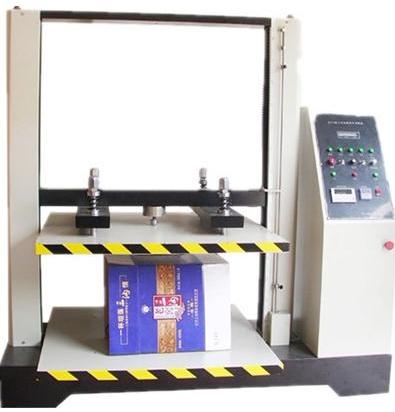

Electrical Resistant Compression Tester

We are offering electrical resistant compression tester.
Application
this instrument fits to test all kinds of packaging bodies, resistance of pressure of paper boxes, stacking strength test. The result could be used as the important basis for factories to pile up the finished packaging or the reference for designing packaging boxes. It meets the standard of tappi-t804, jis-z0212, iso2872, nf h13-001 and cns 2236/3511.
features
1. The machine structure adopts aluminum frames seal board by advanced processing, with high accuracy, low resistance, and seamless double-ball screw and guide columns to improve the stability of operating and accuracy of speed control.
2. American precision strength sensor with our excellent software system could display current value and max. Value.
3. It could transfer data, analysis and summary curve reports by connecting rs232 serial port and business pc. It’s trusted by factories in testing areas.
technical data
capacity of machine 1000,2000,5000kg force display chinese lcd with connecting to computer function
test resolution 1/50,000 per show 0.001kg
force unit n, kg, lb input items max. Capacity (high and low points setting), data, number, cross section. Test result can be checked and deleted.
Output code auto quick rising number, auto memorized data and time, auto print. test speed 5-200mm/min could directly adjust speed on the board.
test space 100*100*100 (or according to clients’ need) structure precision double-slider, twin-crew and screw dustproof stretching curtains.
Power ac motor with frequency converter security devices emergency stop buttons, safety distance setting around travel, freely setting of stop points.
