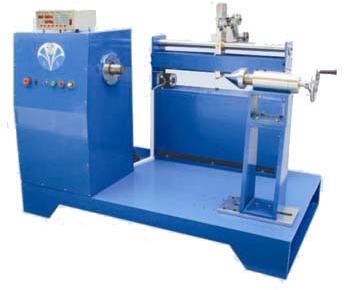

Electrical Transformer Coils Machine

We are offering electrical transformer coils machine, big-torsion winding.
Introduction
gdx-050 electrical transformer coils machine adopts computer cnc control operation and has a precise positioning of cpld decoding speed testing for the main axis. It is equipped with constant current cut-wave stepping motor wire arrangement which is quick and precise and ensures the normal operation of the equipment. gdx-050 electrical transformer coils machine is widely used in the production of high and low frequency transformers and large transformers.
features
1. The date storage segment bits 0~999 procedures.
2. It can be positively and negatively winded with a high speed.
3. The number of turns is accurate. There is the function of power-off protection.
4. When some problems occur, the data can be automatically saved.
5. Cnc can monitor and display the production status.
6. The setting is simple and the operation is convenient.
technical specifications
1. Power supply: 220vac 50hz110vac 60hz
2. Power: 370w
3. Speed of main axis: 1800rpm
4. Wire diameter: 0.5~2.0mm
5. Winding width: 200
6. Wire arrangement width: 200
7. Equipment size: l1000*w700*h500 mm
8. Equipment weight: 74kg
to enhance the machine performances and keep continual r&d, any changes subject to the specifications, sizes and equipments will not be notified.
